Alarm Panels

Digital Pinpoint Location Panels – Distance Measuring Leak Detection Systems
Master Alarm Panel TTDM-128

TraceTek logoMaster Alarm Panel
TTDM-128

  • Monitors for water, fuel oil, chemical and refrigerant gas leaks in several different rooms and floors at any one time
  • Locates a leak digitally to within 1 metre anywhere on the system
  • Distance measuring leak detection system
  • Simultaneously monitors up to 128 SIM controllers (slave units)
  • Can detect multiple leaks or spreading leaks
  • Areas and rooms are named to simplify leak locating (regions/tagging)
Click for More Information

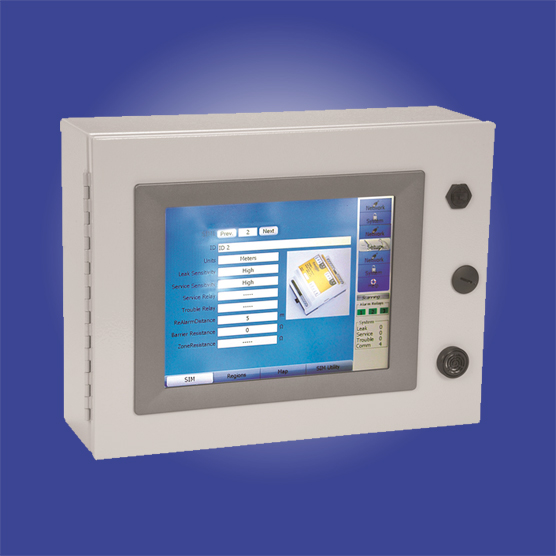

Alarm-panel-TT-TS12

TraceTek logoMaster Alarm Panel
TT-TS12

  • Digital and addressable leak detection system
  • Monitors for water, fuel oil and chemical leaks in several different rooms and floors at any one time
  • Pinpoint location of leak position to +/- 1 metre / 1 zone
  • Distance measuring leak detection system
  • Can detect multiple leaks or spreading leaks
  • Suitable for use with all TraceTek sensing cables and AquiTron probes
Click for More Information
System Interface Module (slave controller) TTSIM-1

TraceTek logoSystem Interface Module (slave controller)
TTSIM-1

  • Monitors all TraceTek sensing cables and AquiTron™ water, fuel oil and refrigerant gas sensors
  • Distance measuring leak detection system
  • Direct BMS interface using MODBUS, Opto-22, or Johnson Controls Metasys protocol
  • Compact enclosure designed to be clipped directly into a controls cabinet
  • Distance measuring leak detection system
Click for More Information

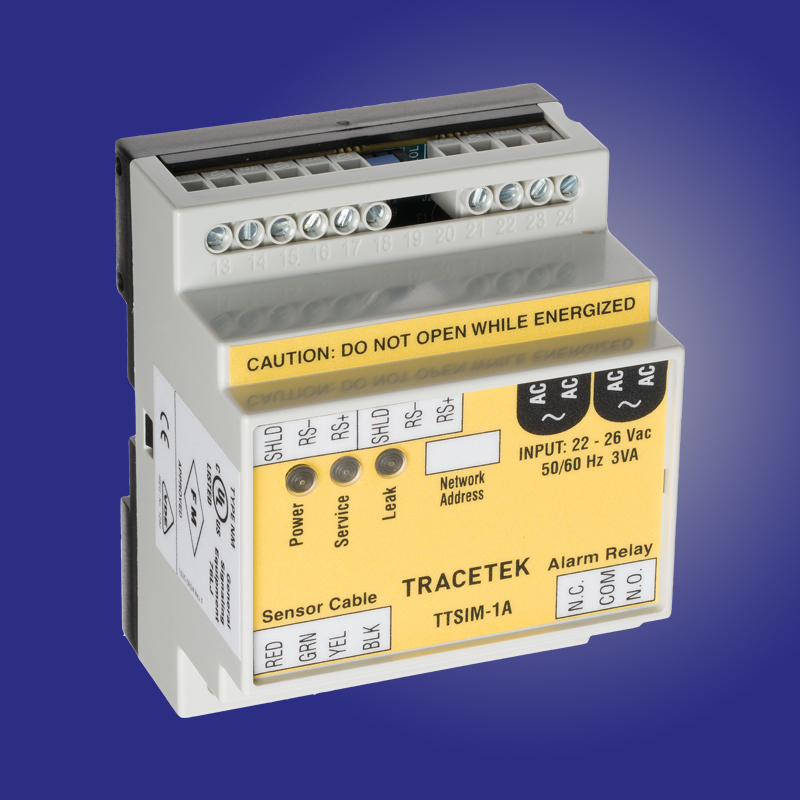

System Interface Module (slave controller) TTSIM-1A

TraceTek logoSystem Interface Module (slave controller)
TTSIM-1A

  • As for TT-SIM-1, but with a programmable volt free alarm relay output
  • Can be connected directly to solenoid valves, pumps and external remote alarm devices
  • Monitors all TraceTek sensing cables and AquiTron™ water, fuel oil and refrigerant gas sensors
  • Distance measuring leak detection system
Click for More Information

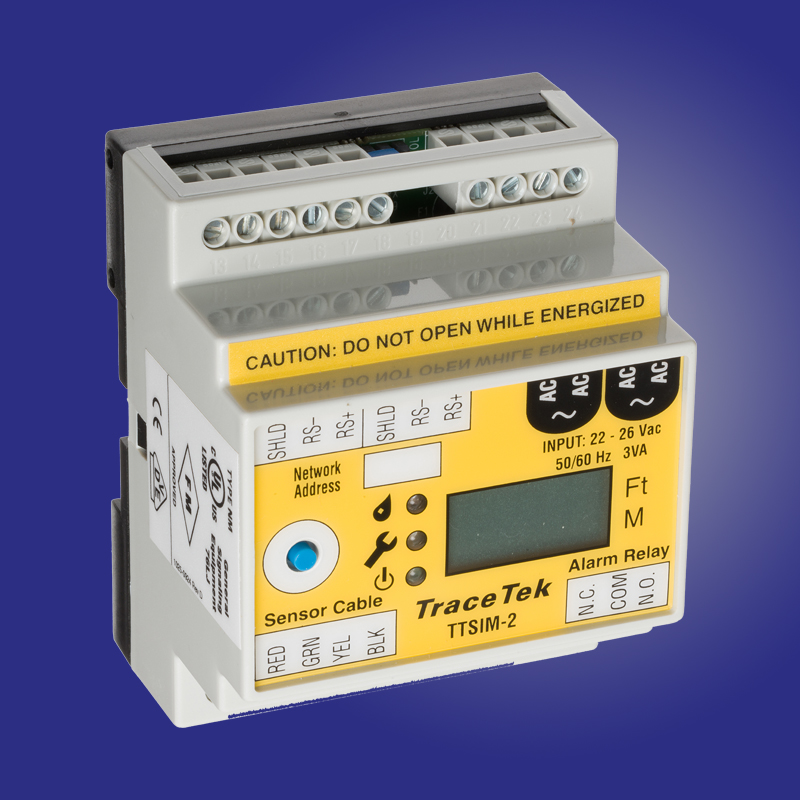

System Interface Module (slave controller) TTSIM-2v

TraceTek logoSystem Interface Module (slave controller)
TTSIM-2

  • This is an enhanced TT-SIM-1A, with a LCD display to show the leak location in metres or feet
  • Can be connected directly to solenoid valves, pumps and external remote alarm devices
  • Monitors all TraceTek sensing cables and AquiTron™ water, fuel oil and refrigerant gas sensors
Click for More Information

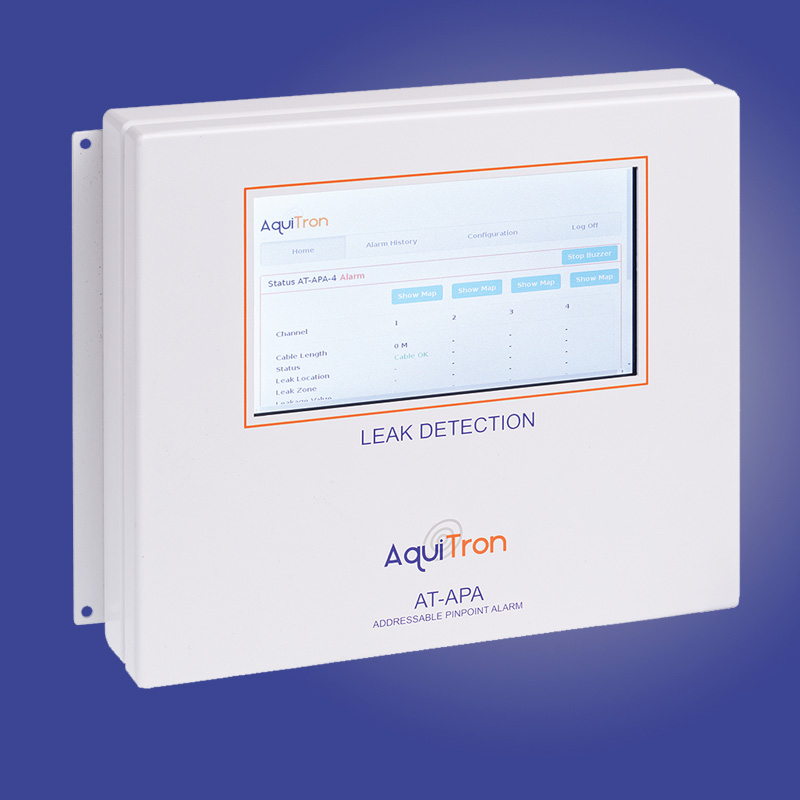

AT-APA-blue-bkgnd

AquiTron logoAddressable Pinpoint Alarm
AT-APA

BACnet compatible

  • Detects a leak at any point on the sensing cable or probe circuit
  • 4 independent sensing circuits (4 zones)
  • Pinpoint meterage location
  • Detects cable break faults
  • 40 addressable regions
  • 4 simultaneous leaks can be detected
  • Touch-screen display
  • Distance measuring leak detection system
Click for More Information

Zone Location Panels

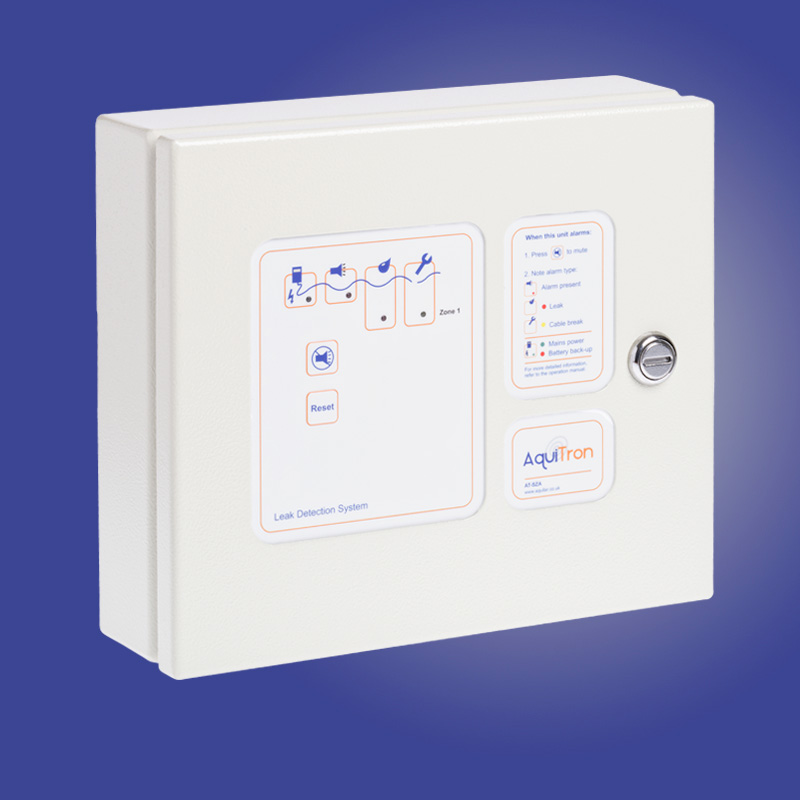

AT-SZA single zone alarm panel

AquiTron logoSingle Zone Alarm
AT-SZA

  • For commercial / light industrial and environmental applications
  • Monitors TraceTek sensing cables and AquiTron™ water, oil probes and refrigerant sensors
  • Can connect to BMS, speech and auto diallers, pumps and solenoid valves for remote indication and isolation
Click for More Information

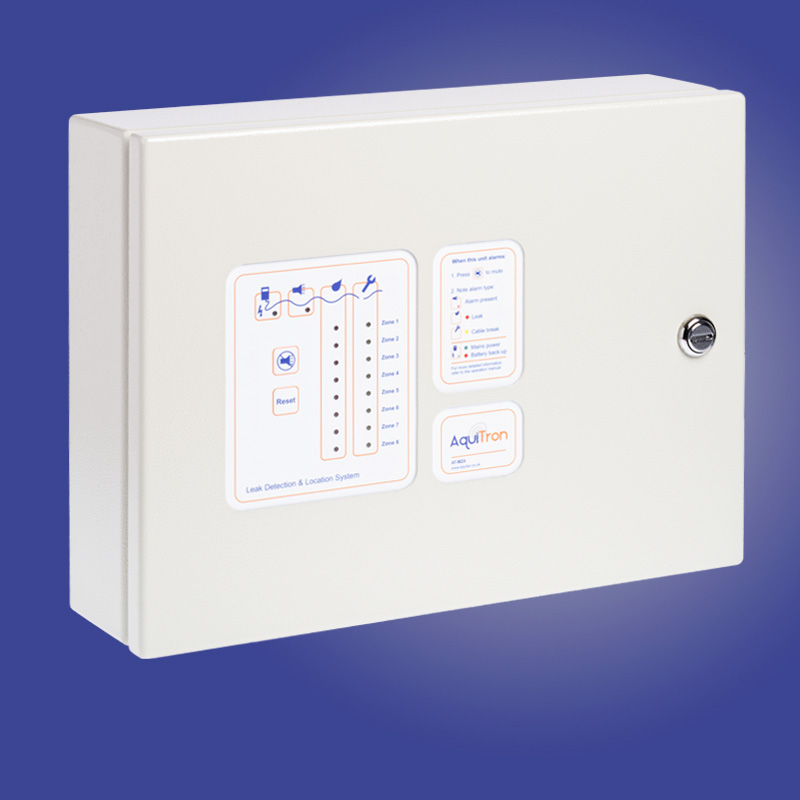

AT-MZA multi zone alarm panel

AquiTron logoMulti Zone Alarm
AT-MZA panel

  • For up to 8 individual sensing zones for multiple areas/floors
  • Monitors TraceTek sensing cables and AquiTron™ sensor probes
  • Alarm relay outputs can control individual air conditioning units, pumps and valves in separate zones
Click for More Information

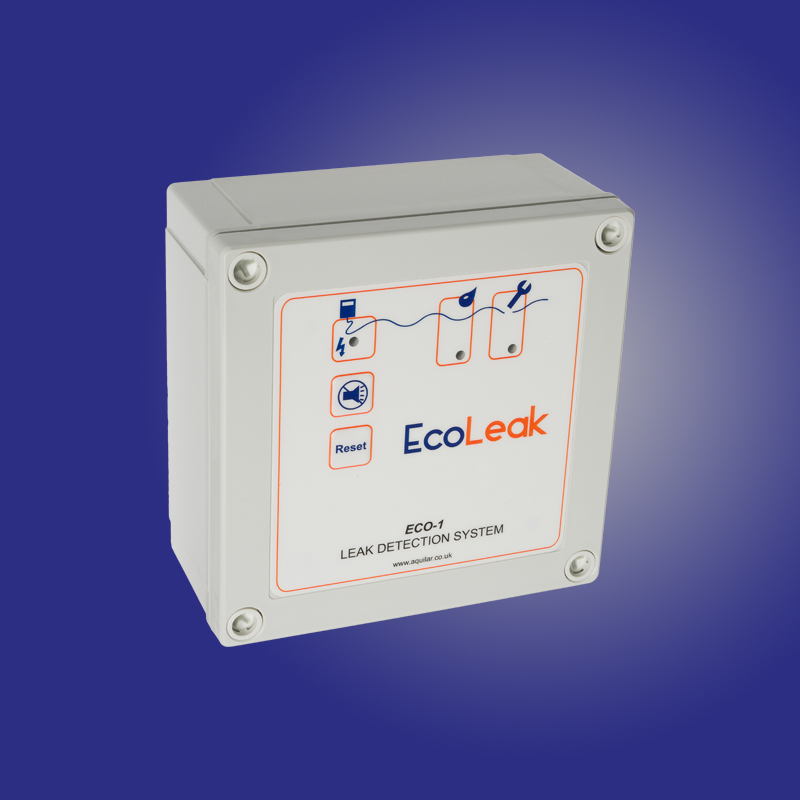

Eco-1 Alarm Panel

EcoLeak logoEco-1 Single Zone Panel

  • Low cost solution for residential and commercial applications
  • Compact design suits installation in tea points, plant rooms, boiler rooms, bathrooms, kitchens, air conditioning/fan coil units, BMS and environmental monitoring control systems
  • 100 to 240Vac operation
  • For water, fuel oil, and chemicals using sensing cable or probes
  • Available as a complete kit with ready made lengths of leader, water sensing cable or probe
Click for More Information

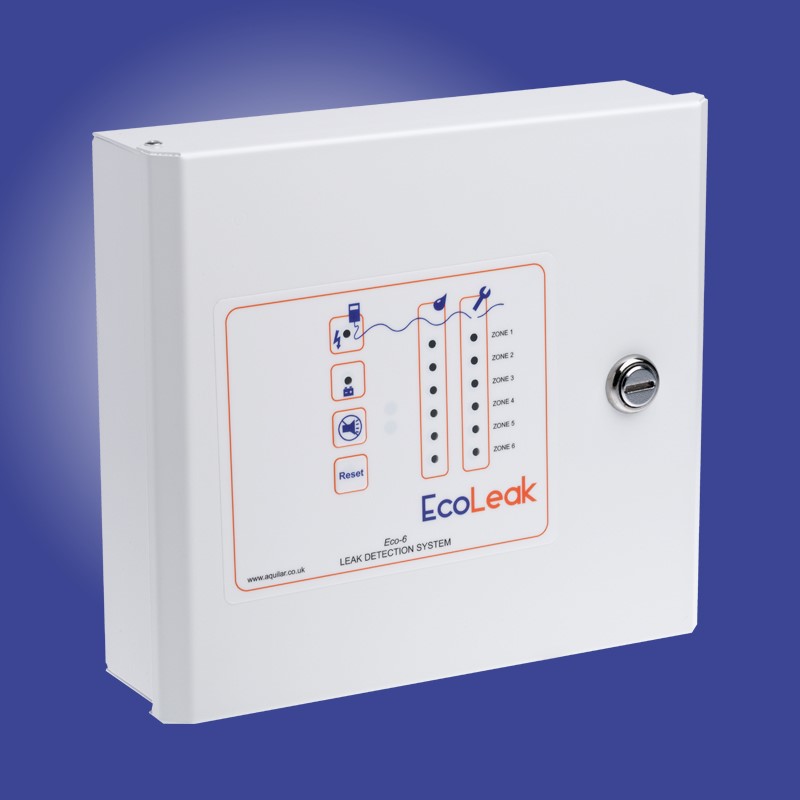

eco-6-panel-blue

EcoLeak logoEco-6 Multi Zone Panel

  • 6 zone leak detection panel with built in 24hr battery back-up
  • Simultaneously detects leaks on all 6 zones
  • Ideally suited for small areas within residential and small commercial applications
  • Compact design suits installation in utility cupboards, plant and boiler rooms, bathrooms, kitchens and air conditioning/fan coil unit drip trays
  • Individual leak and cable break LED display for each zone
  • Remote connection to a BMS, auto dialler or home automation system
  • 110 to 240Vac operation
  • Suitable for detection of water, hydrocarbon fuels and chemicals using sensing cable or probes
Click for More Information

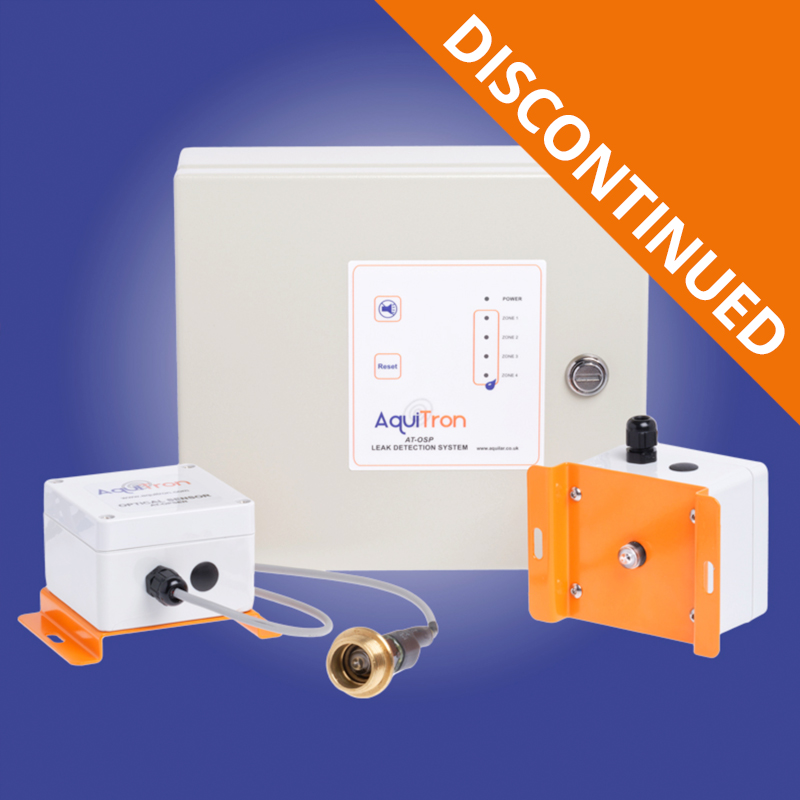

AT-OSP-BLUE-BKGND

AquiTron logoAT-OSP Panel

  • Instant detection of fuel oils, chemicals and water
  • Applications include generator, oil storage and day storage tank rooms, plant areas, bunds, drip-trays and floor gullies
  • Uses industry-proven optical sensor technology for quick and accurate detection
  • Can be screwed into the bottom of pipe in pipe system (dual wall pipe or dual wall tank)
  • Can be screwed into the side of a tank for high level indication
Click for More Information

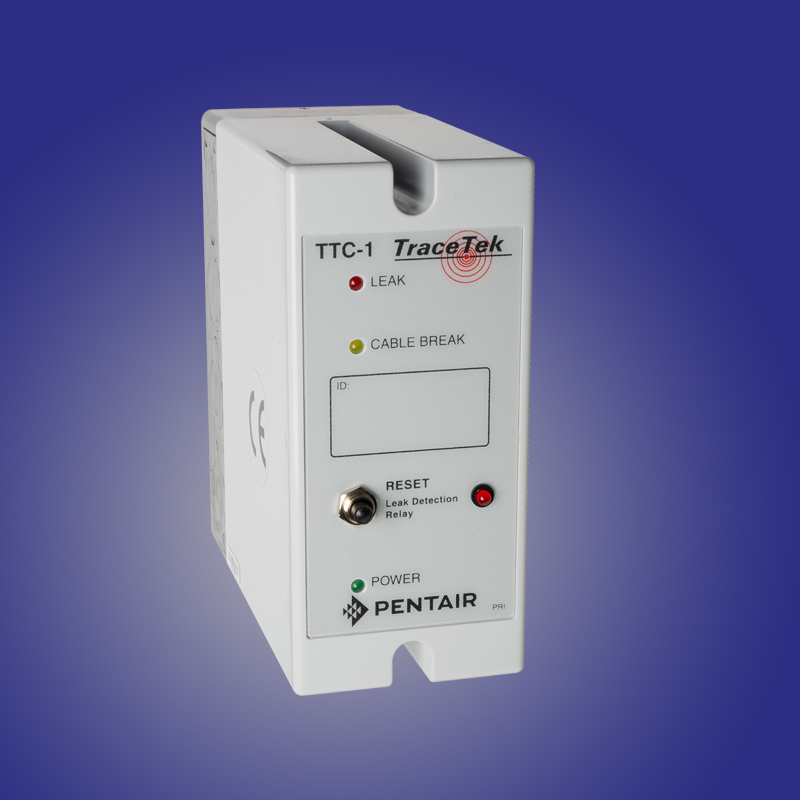

TTC-1

TraceTek logoTTC-1

  • Surface or Din rail mountable enclosure for installation in environmental monitoring control systems and air-conditioning / fan coil units, BMS
  • 12/24V ac/dc operation
  • ATEX and SIL2 certified
  • Sensitivity and time delay function to prevent spurious alarms
  • For water, fuel oil, chemical and refrigerant gas, using sensing cable or probes
Click for More Information

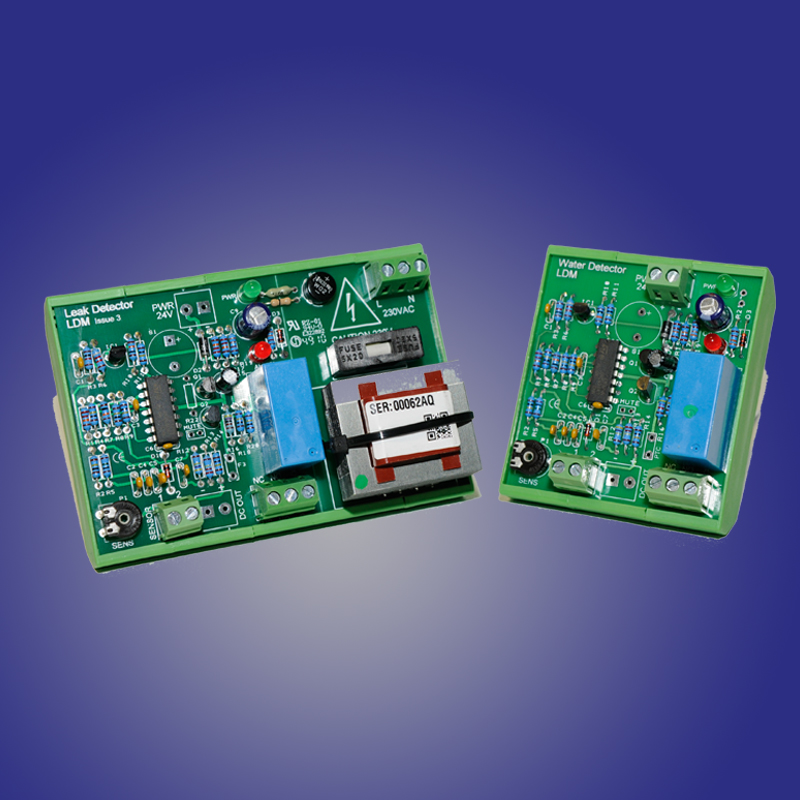

AT LDM

AquiTron logoLeak Detection Module AT-LDM

  • Open chassis design suits installation in air conditioning/fan coil units, BMS and environmental monitoring control systems
  • DIN Rail mounting
  • 24 Volts AC/DC or 230Vac. (120Vac special order)
  • For water, fuel oil, and chemicals using sensing cable or probes
  • Open chassis version
  • Capable of monitoring a combination of:
    • 45 metres of any TraceTek sensing cable
    • 5 detector probes / optical sensors / float switches / immersion sensors
  • Status indicators, LED’s: power, communications, leak
  • This module does not detect cable breaks
  • Power 24 Volts AC/DC or 230Vac. (120Vac special order)
  • Output communications:
    • leak volt free contacts (one set)
    • Audible alarm
  • Remote connection to speech and auto diallers
Click for More Information

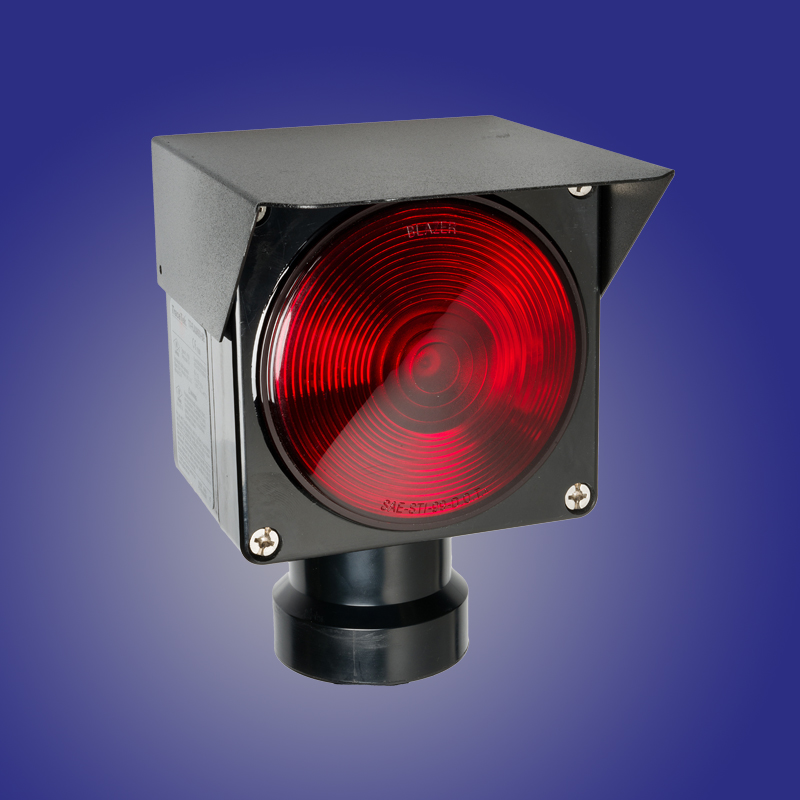

TT-FLASHER-BE

TraceTek logoTT-FLASHER-BE

  • The TT-FLASHER-BE is an inexpensive, battery powered device that provides an easy-to-see flashing light signal whenever a TraceTek sensor cable or probe detects a leak
  • No external zener safety barriers are required
  • ATEX certified alarm indicator
  • Can be used to monitor TT-FFS, TT5000, TT5001 and TT3000
Click for More Information
