The new Eco-6+ leak detection panel with enhanced features for leak detection in commercial buildings

The Eco-6+ panel is an updated and improved version of the original Eco-6 panel, providing greater versatility and function with increased sensing capability, while keeping a compact form factor and simple to use, reliable layout. The Eco-6+ is capable of monitoring 6x individual zones of up to 160 metres of TraceTek sensing cable or 10x Detection probes. The panel is designed for use with all EcoLeak and TraceTek sensing cables and sensors for detection of water and hydrocarbon liquid leaks. The Eco-6+ can also support battery fully functional back-up for up to 24 or 6 hours when using 3.2Ah or 1.2Ah option.

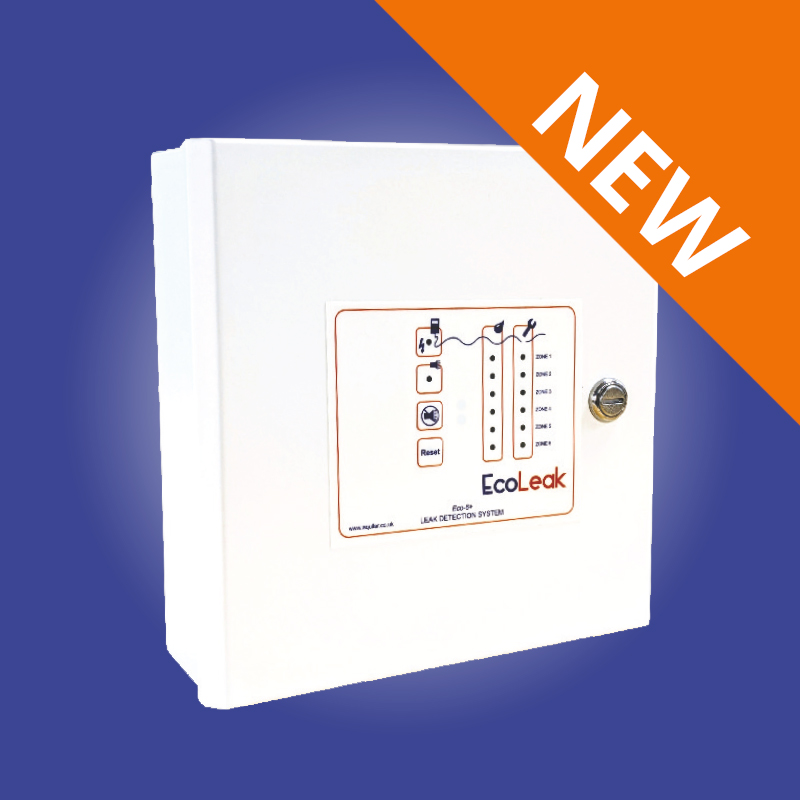

Eco-6+ Multi Zone Panel
	6 zone leak detection panel with optional battery back-up (up to 24 or 6 hours) Simultaneously detects leaks on all 6 zones 30 metres per zone (EcoLeak Cable) or up to 60 metres with the ECO-BCB 160 metres per zone (TraceTek Cable) Detection Probes: 1x EL-MPS-R probe, per zone (2 per zone using ECO-BCB) 10x AT-PROBE-TS (TT-FLAT-PROBE), 10 x AT-OPSEN or 2 x AT-SRG per zone Compact design suits installation in utility cupboards, plant and boiler rooms, bathrooms, kitchens and air conditioning/fan coil unit drip trays Individual leak and cable break LED display for each zone Leak, Cable break (fault) alarms and remote sounder relays Six individual ‘Leak Detected’ volt free relays, one per zone for connection to a BMS and/or individual solenoid valves or other remote monitoring systems Additionally; 1 Common Cable break/fault relay, plus a dedicated remote sounder relay for connection to a BMS, auto dialler or home automation system New Eco-Network connector allowing multiple EcoLeak panels to be connected in a network and reporting back to one master EcoLeak panel for even more connectivity 12Vdc powered auxiliary output for use with AT-OPSEN sensors (max 6), AT-SRG refrigerant sensors (max 12), sounder/beacons, remote alarms (max 500mA) 110 to 240Vac and battery back-up operation Suitable for sensing leaks for water, hydrocarbon fuels and chemicals using sensing cable or water, fuel or refrigerant gas sensing probes Audible alarm (90dB@ 10cm) IP43 steel lockable enclosure	Click for Datasheet Installation Instructions Wiring instruction video
