Monitor commercial spaces for water, fuel and refrigerant gas liquid leaks…

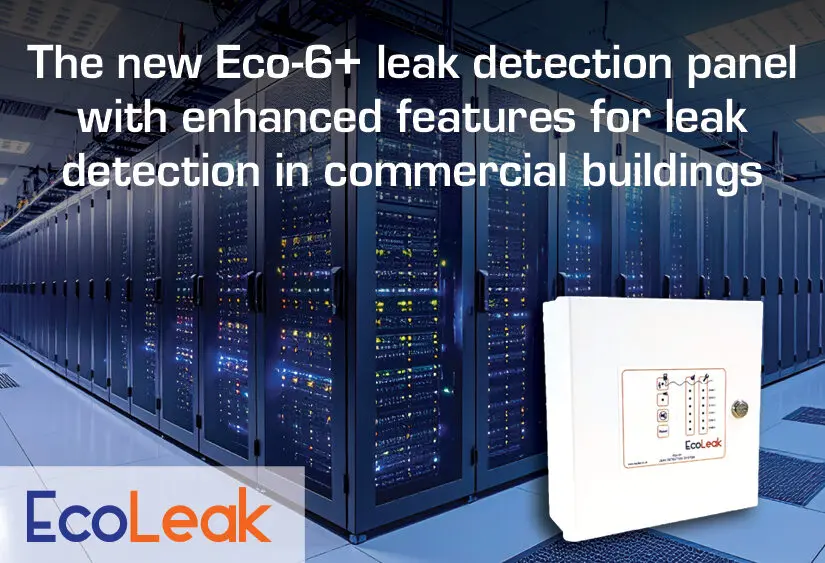

The Eco-6+ panel is an updated and improved version of the original Eco-6 alarm panel for the detection of water, fuel and refrigerant gas leaks in commercial buildings. The new panel provides greater versatility and function with increased sensing capability, while keeping a compact form factor that is simple to use.
The Eco-6+ is capable of monitoring 6 individual zones of up to 160 metres of TraceTek sensing cable or 10 detection probes. The panel is designed for use with all EcoLeak, TraceTek and AquiTron sensing cables, probes and refrigerant sensors. The Eco-6+ can also support battery back-up for up to 24 or 6 hours when using 3.2Ah or 1.2Ah optional modules.
Eco-6+ alarm panel features
Extended sensing cable capability:
- 30 metres per zone (EcoLeak Cable) or up to 60 metres with the ECO-BCB
- 160 metres per zone (TraceTek Cable)
Extended probe capability:
- 1 x EL-MPS-R probe, per zone (2 per zone using ECO-BCB)
- 10 x AT-PROBE-TS, 10 x AT-OPSEN or upto 2 x AT-SRG per zone using ECO-BCB
Other features include:
- Six individual ‘Leak Detected’ volt free relays, one per zone for connection to a BMS and/or individual solenoid valves or other remote monitoring systems
- 12Vdc powered auxiliary output for use with AT-OPSEN sensors (max 6), AT-SRG refrigerant sensors (max 12), sounder/beacons, remote alarms (max 500mA)
- New Eco-Network connector allowing multiple EcoLeak panels to be connected in a network and reporting back to one master EcoLeak panel for even more connectivity
- Optional battery back-up (up to 24 or 6 hours), two battery options available, 3.2Ah or 1.2Ah
