Liquid Sensing Devices

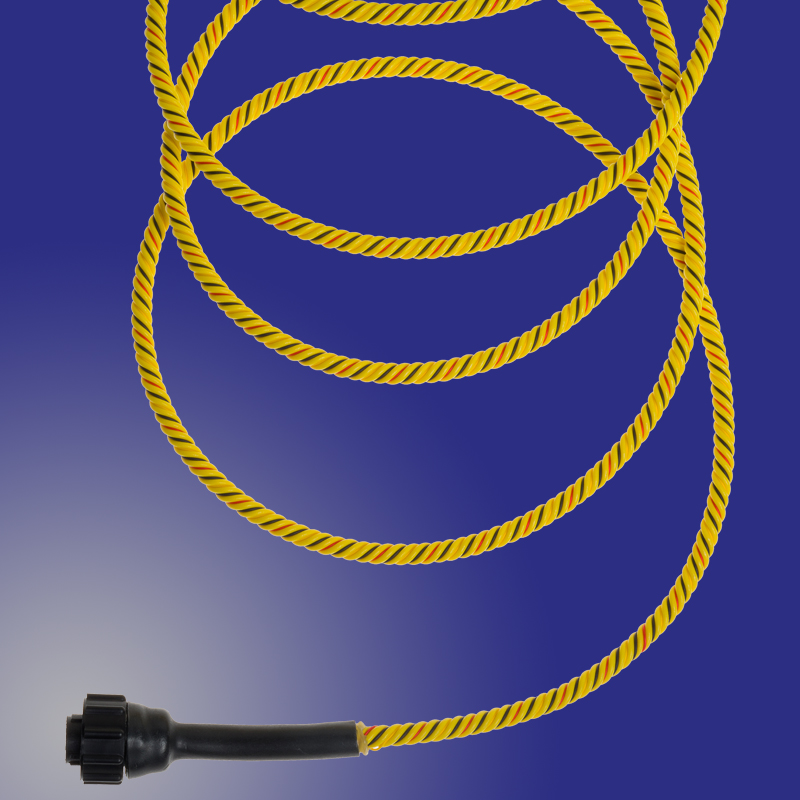

TT1000 Water Sensing Cable

TT1000 Water Sensing Cable

  • Detects the presence of water at any point along its length
  • Small but rugged, TT1000 cable is extremely resistant to abrasion and corrosion
  • Has a smooth design that dries quickly.
  • Available in factory terminated lengths with pre installed connectors, 1, 3, 5, 7.5 and 15 metres
  • Can be monitor by both the TraceTek digital pin point location system and the AquiTron zonal panels
Click for More Information
TT1100-OHP Water Sensing Cable

TT1100-OHP and TT1100-THIN Water Sensing Cable

  • Designed to attach to overhead pipes
  • Detects the presence of water at any point along its length.
  • Available in factory terminated lengths with pre installed connectors, 1, 3, 5, 7.5 and 15 metres
  • Can be monitor by both the TraceTek digital pin point location system and the AquiTron zonal panels
Click for More Information

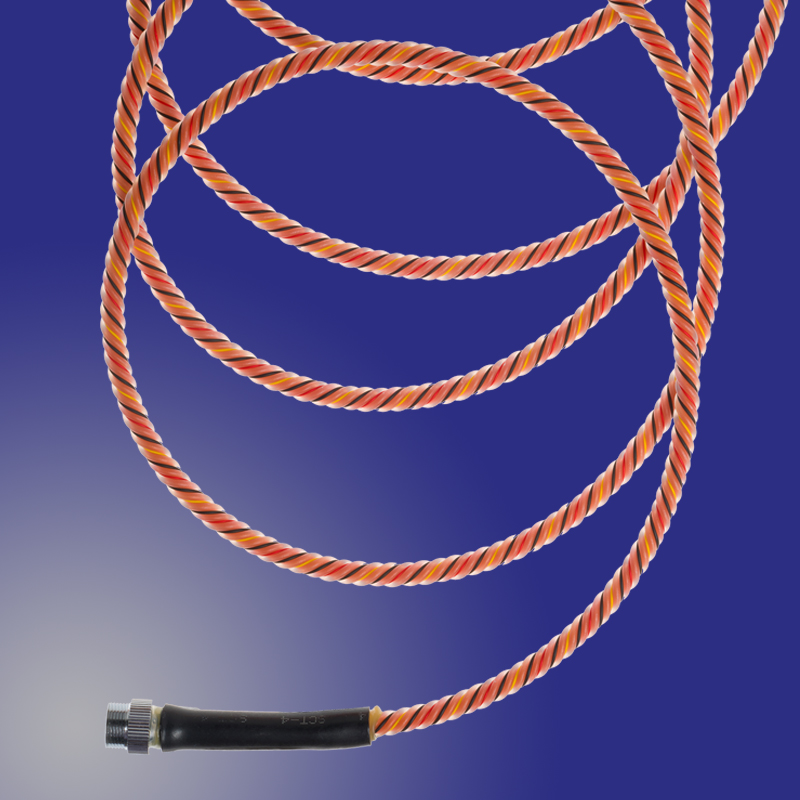

EL-ECO-SC - EcoLeak water sensing cable

EL-ECO-SC – EcoLeak Water Sensing Cable

  • Detects the presence of water at any point along its length
  • Small, flexible and rugged construction, easy installation
  • Two sensing wires helically constructed using fluoropolymer conductive technology.
  • Mechanically strong and resistant to abrasion and corrosion.
  • Has a smooth design that dries and is reusable very quickly.
  • Available in 1, 3, 5, 10, 15, 20, 25, 30 meter lengths with a pre-installed connector.
  • 3 to 50 metres leader cables available with preinstalled connector.
  • For use only with the EcoLeak series of panels.
Click for More Information

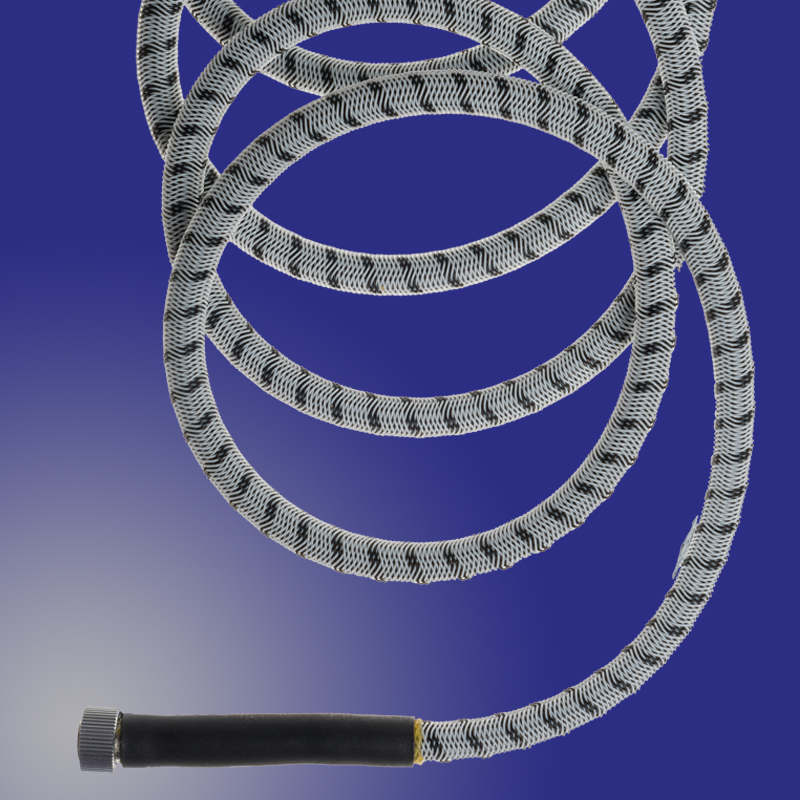

TT3000 Aqueous Chemical Sensing Cable

TT3000 Aqueous Chemical Sensing Cable

  • Designed to detect and withstand a wide range of chemicals such as Hydrochloric, Sulphuric acids, Methanol, de-ionized water, include
    radioactive liquids and many more
  • A comprehensive chemical response chart is available
  • This cable provides fast detection and is reusable
  • Available in factory terminated lengths with pre installed connectors, 1, 3, 5, 7.5 and 15 metres
  • Can withstand temperature up to 90 deg C
Click for More Information

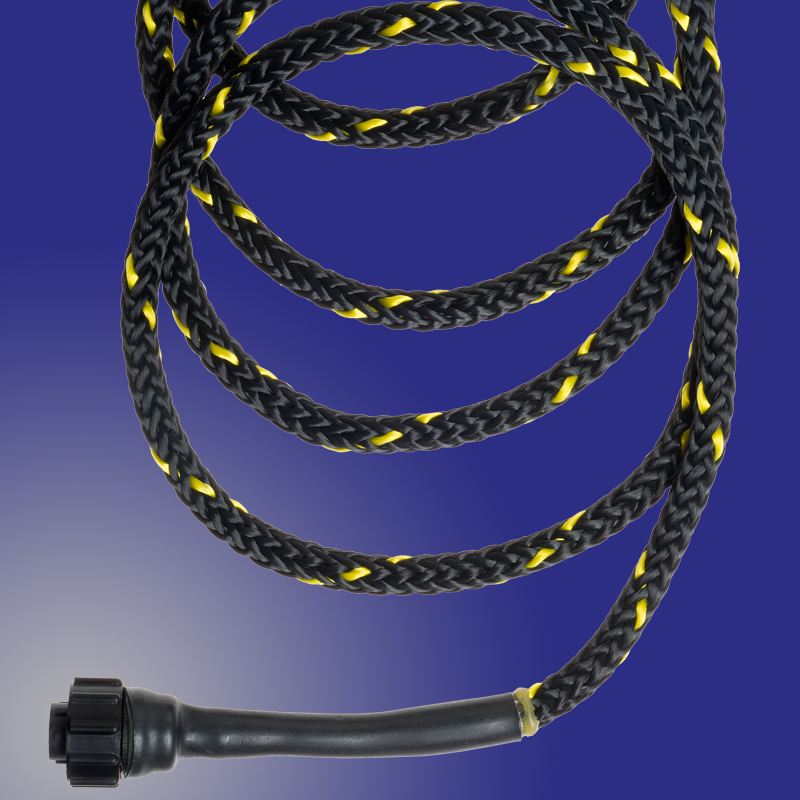

TT5000 Fuel Sensing Cable

TT5000 Fuel Sensing Cable

  • Detects the presence of liquid hydrocarbon fuels at any point along its length.
  • Does not react to the presence of water. Can be used internally, externally and buried in the ground
  • Available in factory terminated lengths with pre installed connectors, 1, 3, 5, 7.5 and 15 metres and in bulk reels up to 150 metres
  • Can be used on Hazardous areas with ATEX certification
Click for More Information

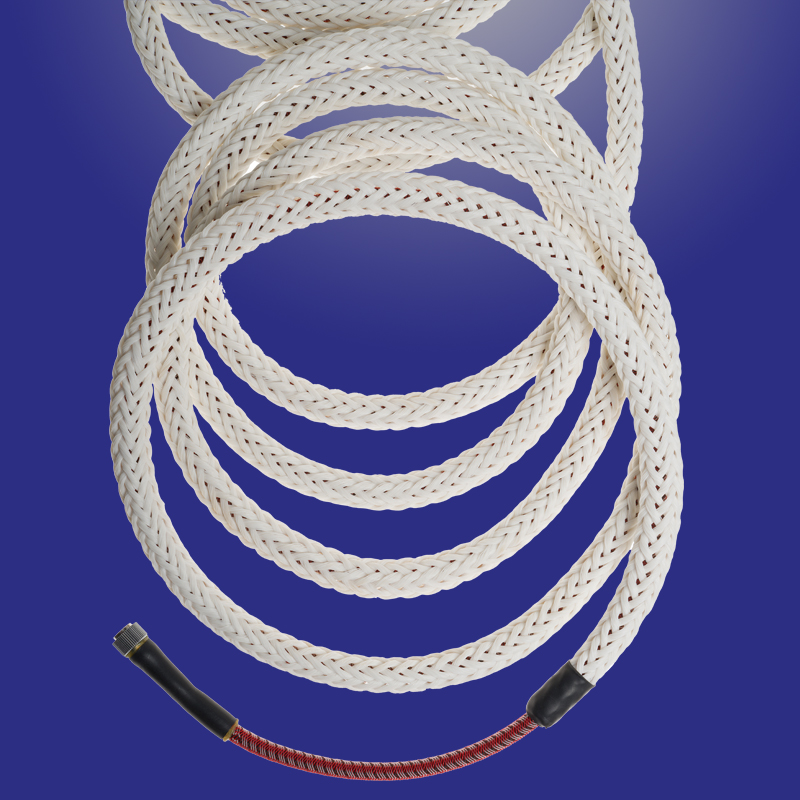

TT5000-HUV Fuel Sensing Cable

TT5000-HUV Fuel Sensing Cable

  • Same specification as the TT5000 however fitted with an overbraid to protect the cable from ultra violet light when installed externally
  • Detects a wide range of liquid hydrocarbon fuels and oils.
  • Designer to be attached to the bottom of external pipe
  • Detects the presence of liquid hydrocarbon fuels at any point along its length.
  • Does not react to the presence of water.
Click for More Information
TT5000-HS Fuel Sensing Cable

TT5000-HS Fuel Sensing Cable

  • Designer to be used within a slotted pvc conduit buried in the ground
  • Detects the presence of liquid hydrocarbon fuels at any point along its length.
  • Does not react to the presence of water.
  • Designed to be used externally buried below ground along pipelines
Click for More Information

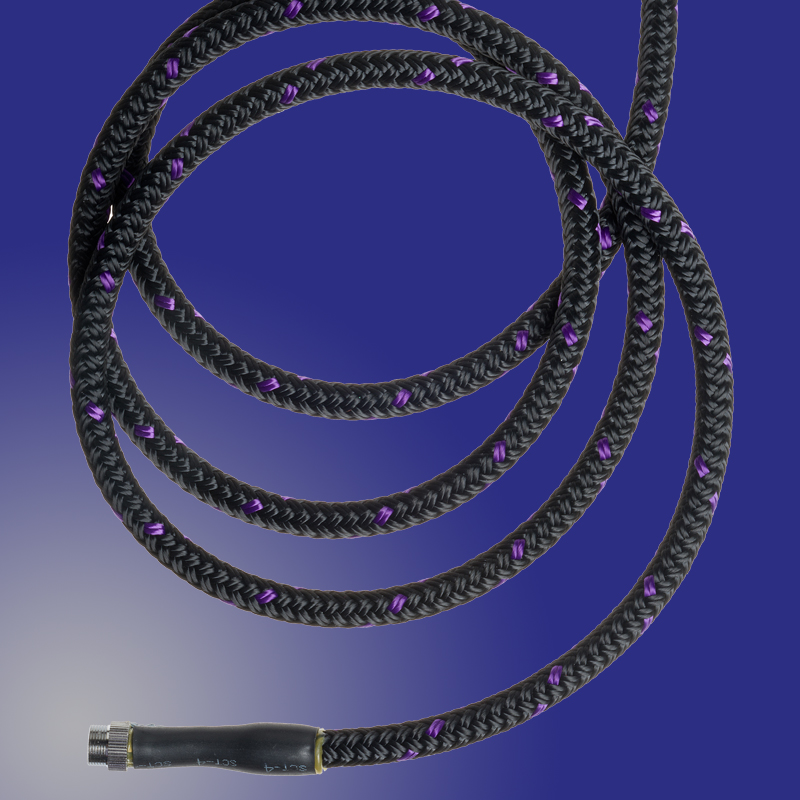

TT5001 Solvent Sensing Cable

TT5001 Sensing Cable

  • Detects liquid organic solvents anywhere along its length
  • Does not react to the presence of water
Click for More Information
TT5001-HUV

TT5001-HUV Solvent Sensing Cable

  • Same specification as TT5001 however fitted with an overbraid to protect the cable from ultra violet light when installed externally
  • Detects liquid organic solvents anywhere along its length
  • Does not react to the presence of water
Click for More Information

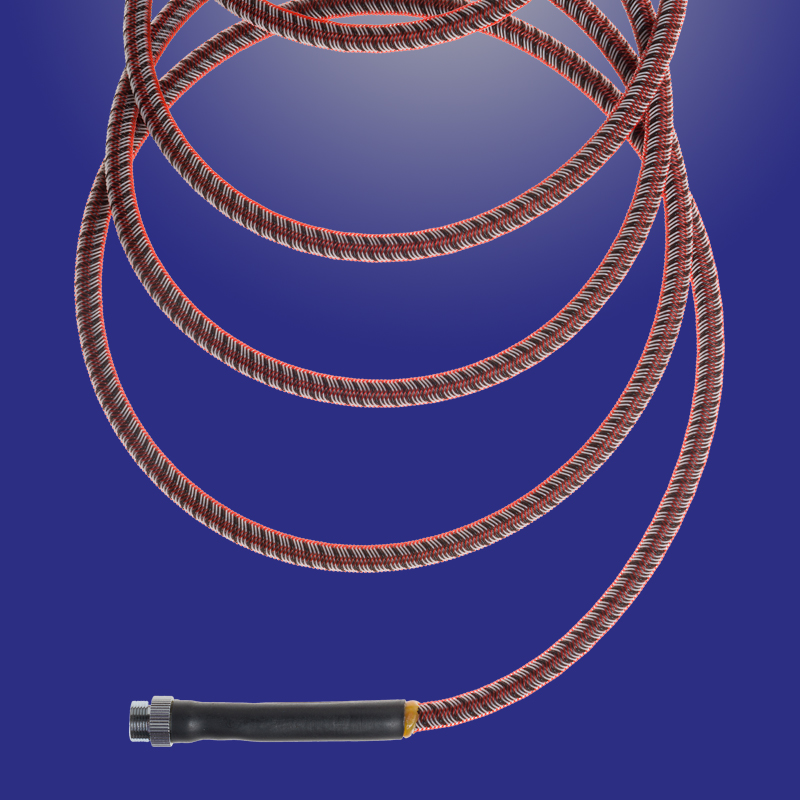

TT7000 Strong Acid Sensing Cable

TT7000 Strong Acid Sensing Cable

  • Detects leaks and spills of sulphuric and nitric acid at any point along the cable length.
  • Available in factory terminated lengths with pre installed connectors, 1.5,
    3, 5, 7.5 and 15 metres and in bulk reels up to 300 metres
  • For internal applications and can be externally buried below ground along pipelines
  • Also available for external above ground applications with a ultra violet protective outer overbraid (TT7000-HUV)
Click for More Information

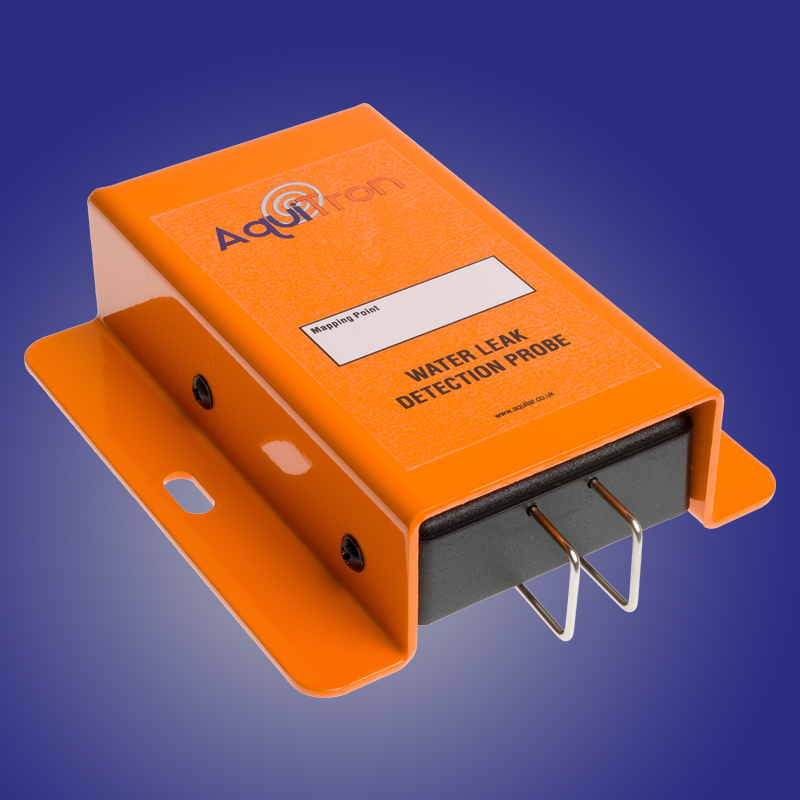

AT-Probe Water Detection

AT-Probe Water Detection

  • Floor or wall mounted suitable for many types of applications
  • For plant rooms, bunds, drip-trays, gullies or gutters
  • Use with any of the TraceTek and AquiTron™ alarm panels
Click for More Information

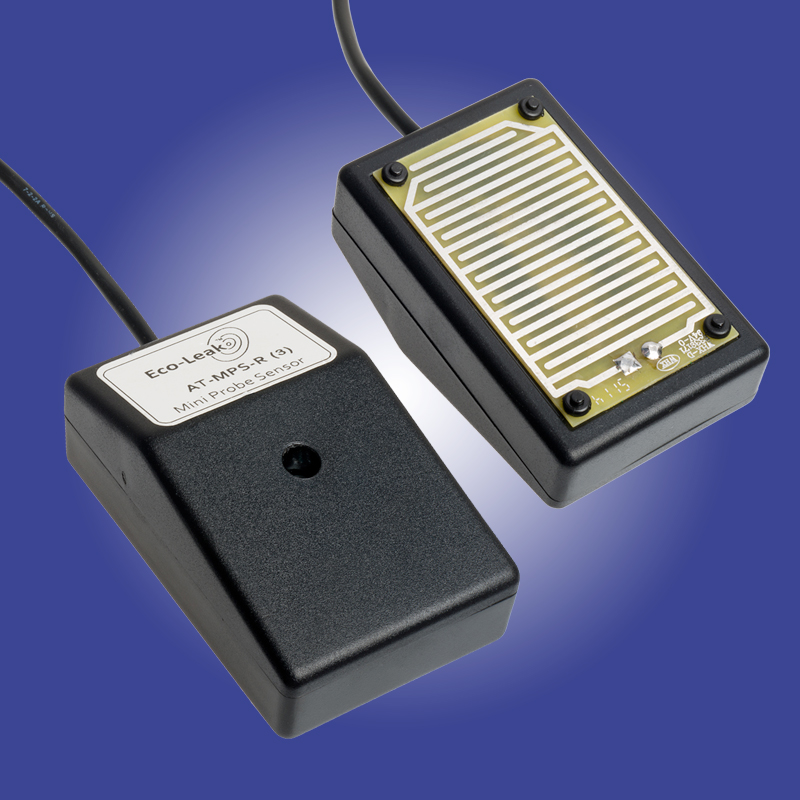

EL-MPS-R mini probe

EL-MPS-R Mini Probe (Water Sensing)

  • Low point water leak detection probe.
  • Compact size ideally suited for small shallow locations.
  • Low profile design.
  • Detection between 1.5 & 2mm depth of water (can be adjusted to 0.9mm).
  • Dries quickly after been removed from water.
  • AT-MPS for use only with AquiTron series of panels.
  • AT-MPS-R for use only with EcoLeak series of panels.
Click for More Information

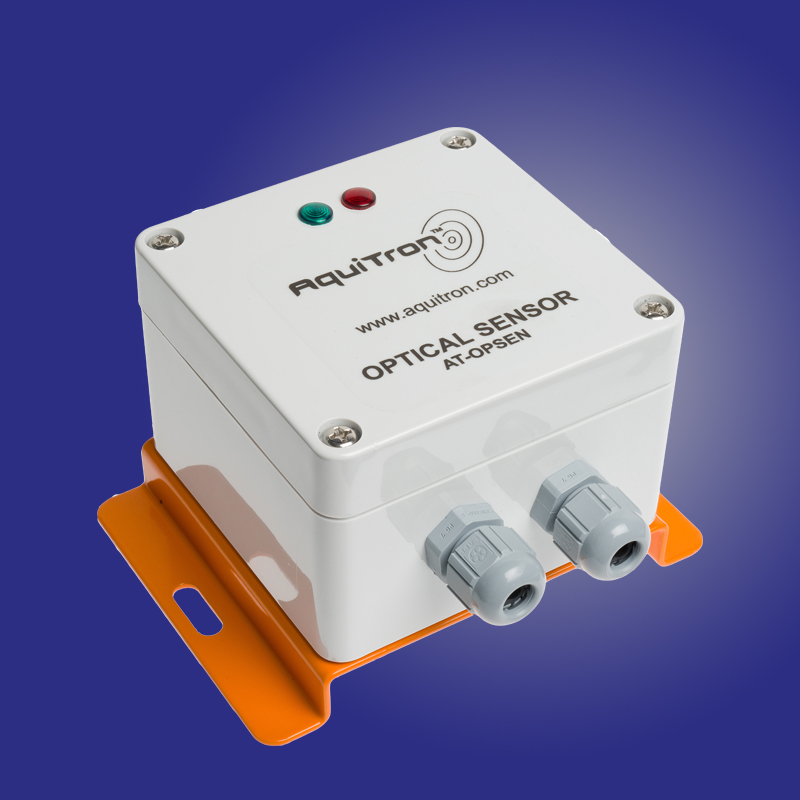

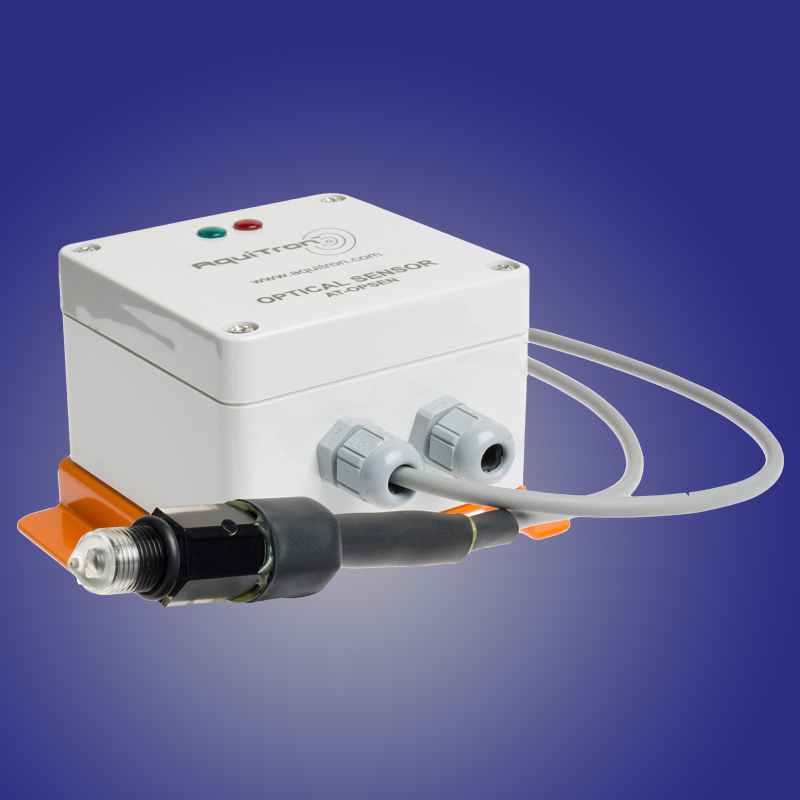

AT-OPSEN Optical Oil

AT-OPSEN Optical Oil Sensor

  • Instant detection of fuel oils, chemicals and water, suitable for generator, oil storage and day storage tank rooms, plant areas, bunds, drip-trays and floor gullies
  • Uses industry-proven optical sensor technology for accurate detection
  • Use with any of the TraceTek and AquiTron™ alarm panels
Click for More Information
AT-OPSEN-R Optical Oil

AT-OPSEN-R Optical Oil Sensor

  • This is an adaptation of the AT-OPSEN with the sensor element removed from the IP67 enclosure, enabling the sensor to be remotely mounted.
  • Can be screwed into the bottom of pipe in pipe system
  • Screwed into the side of a tank for high level indication
Click for More Information
TT-FFS Fast Fuel Sensor

TT-FFS Fast Fuel Sensor

  • Fast response to small amount of fuel
  • Does not detect water
  • Resets for multiple uses
  • Detects fuel floating on water, spreading on a flat surface or collecting in a sump.
  • SIL-2 Rated & ATEX system complaint
Click for More Information

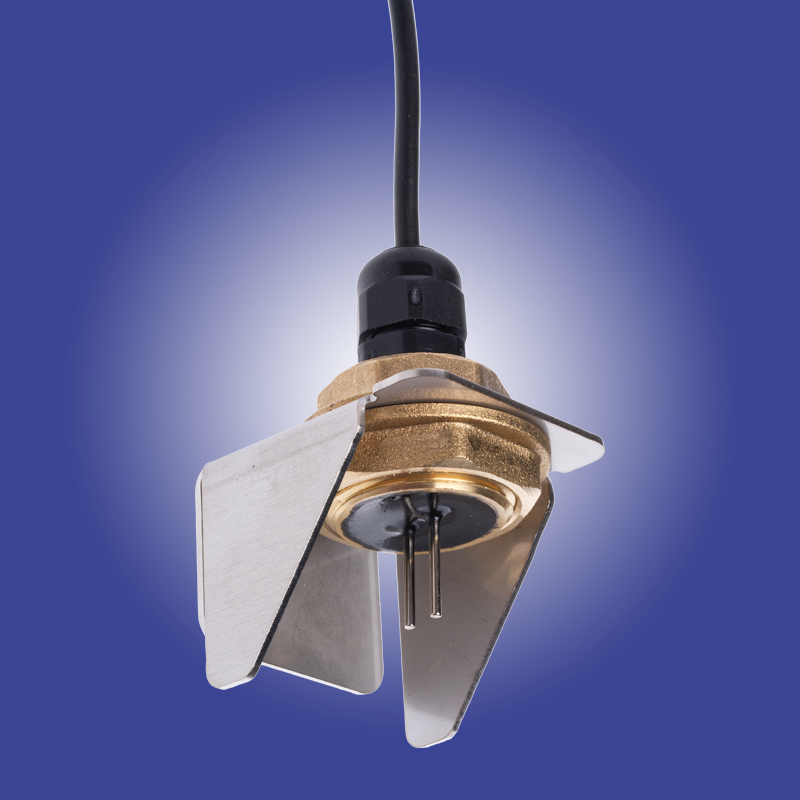

AT DTP Drip Tray Probe

AT-DTP Drip Tray Probe Water Sensor

  • Designs to hook over the size of a fan coil units and air conditioning unit drip trays to detect any water leaks
  • Use with any of the TraceTek and AquiTron™ alarm panels
  • Capable of detecting all conductive liquids (water, coolants, foul water)
Click for More Information

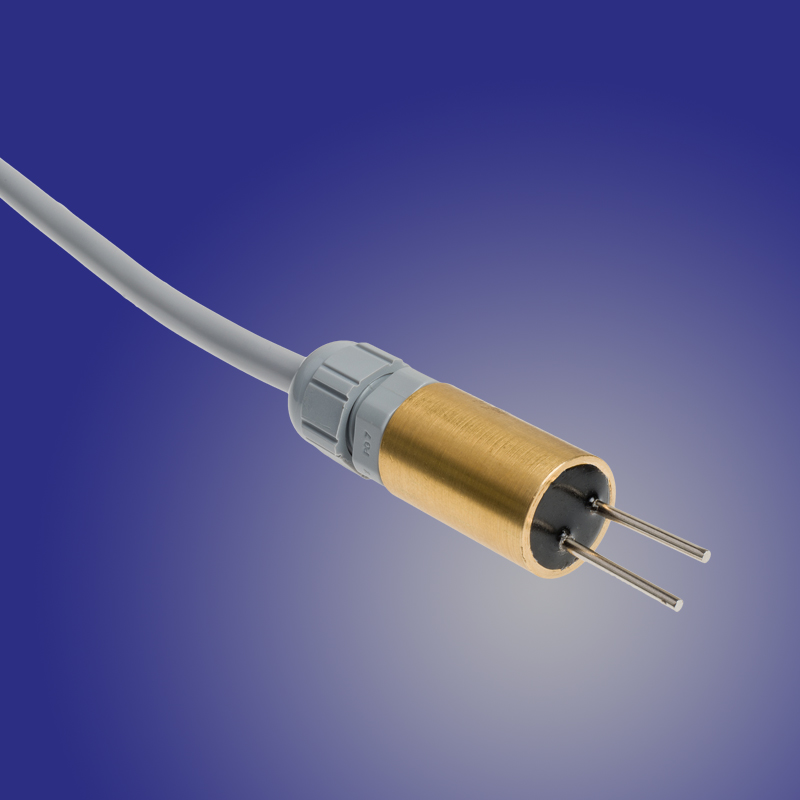

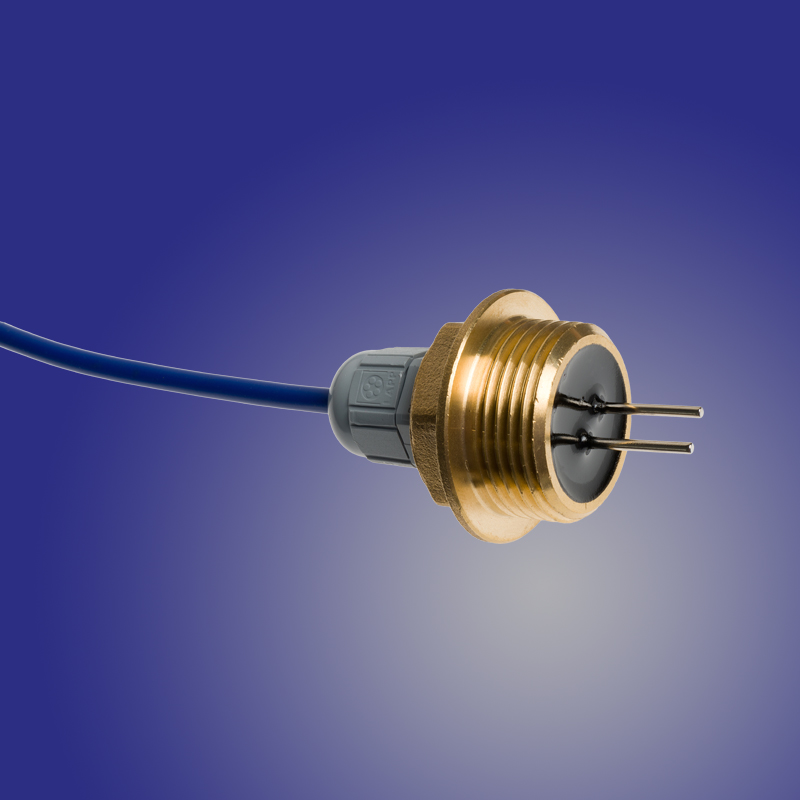

AT-600A Immersion Probe

AT-600A Immersion Probe Water Sensor

  • Capable of detecting all conductive liquids (water, coolants, foul water)
  • Can be screwed into the bottom of pipe in pipe system
  • Can be fitted in an overflow pipe to detect the water
  • Designed for use with all TraceTek and AquiTron™ alarm panels
  • No separate power supply required
Click for More Information

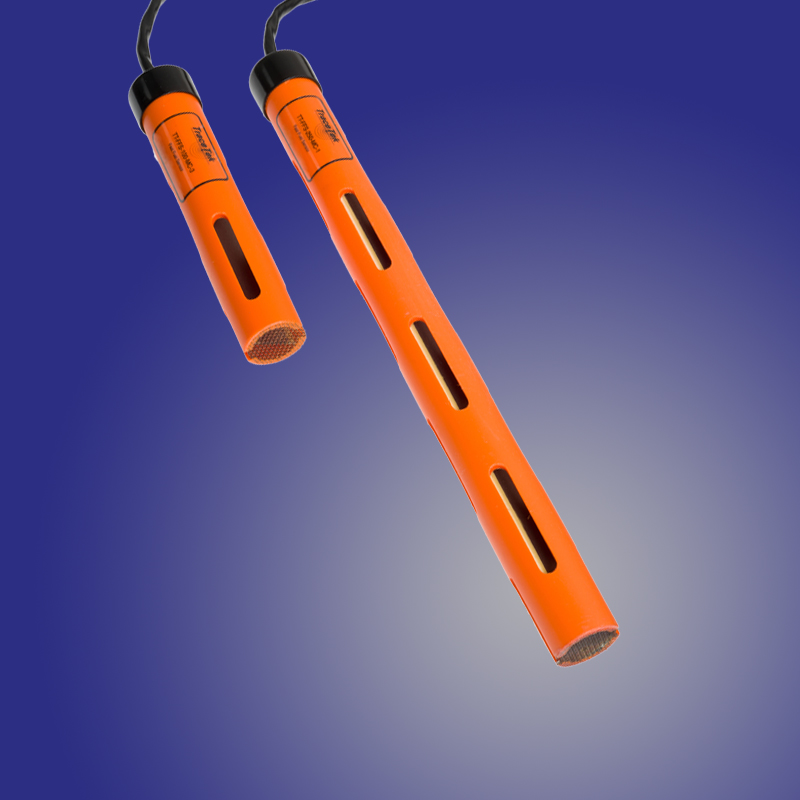

AT-TDWS Tundish Water Sensor

AT-TDWS Tundish Water Sensor

  • Designed for placing horizontally or vertically within an open tundish
  • Creates alarm when water flows past the end of the sensor tips
  • Fully submersible. Dries in seconds
  • Can be used with all AquiTron and TraceTek series of alarm units
Click for More Information

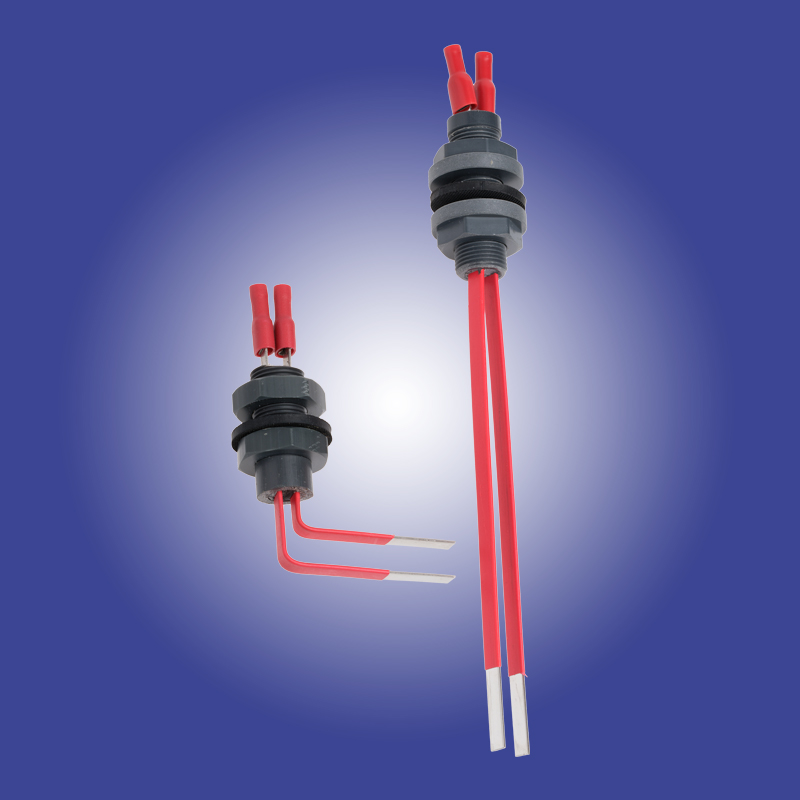

Toilet Overflow Sensor AT-450A

AT-350A Toilet Overflow Sensor

  • Designed to save water on overflowing toilets
  • Specially designed to be fitted in to the top of a WC cistern overflow to alarm when water is overflowing
  • Designed for use with all AquiTron™ alarm panels
  • No separate power supply required
Click for More Information
