BREEAM AquiTron AT-OFC Occupancy Flow Controller

  • BREEAM leak detection Aquilar logo, POL 01, WAT 03

AquiTron AT-OFC Occupancy Flow Controller
Wat 03 Water leak prevention system

BREEAM Wat 03 PIR Water Shut-Off AT-OFC
BREEAM Wat03 PIR water shutoff AT-OFC

BREEAM Wat03 - Occupancy Flow Controller

BREEAM Wat03 PIR sensor AT-OFC

BREEAM Wat03 – Water shutoff valve
AquiTron AT-OFC Occupancy Flow Control Wat 03 Water leak prevention system
Wat 03 (Part 2) Flow Control Devices
Credits available: 1

Credit 2: Compliant, PIR WC Controller with WRAS-Approved Solenoid Valves

BREEAM Criteria: A presence detector and controller i.e. an automatic device detecting occupancy or movement in an area to switch water on and turn it off when the presence is removed. (Source: www.breeam.com)

Aim: Flow control devices that regulate the supply of water to each WC area/facility according to demand are installed (and therefore minimise water leaks and wastage from sanitary fitting networks). See CN11.

  • CN 11: Flow control systems may control combined WC areas, such as male and female toilets within a core; they are not required for each individual sanitary appliance. The criteria are set to encourage the isolation of the water supply to each WC block when it is not being used

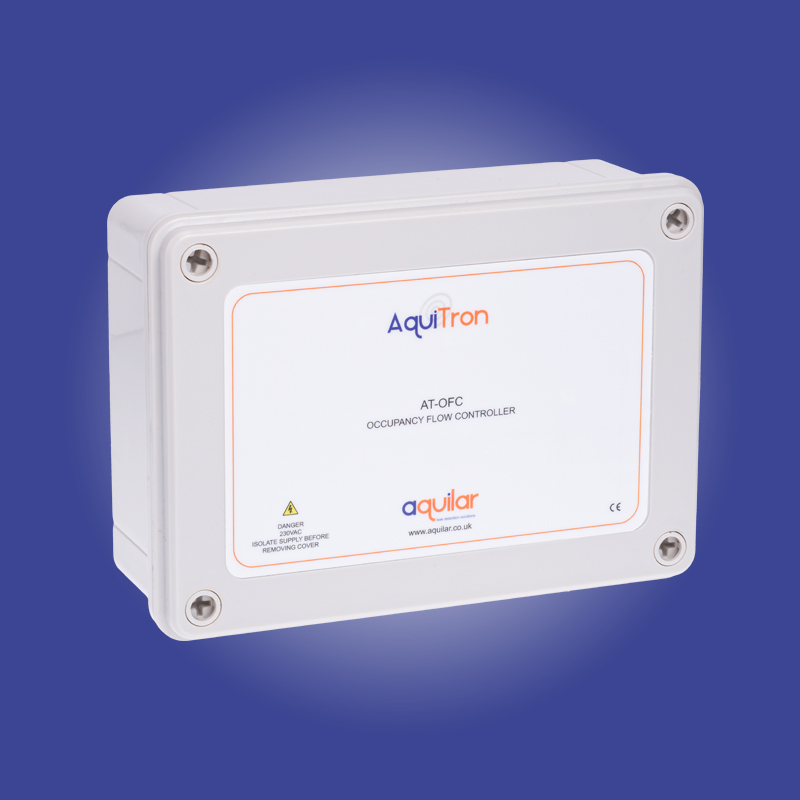

  • The AquiTron Occupancy Flow Controller (AT-OFC) is a BREEAM Wat 03 (Part 2) Flow control system to help achieve the BREEAM credit
  • (BREEAM credit available: 1). The system is used as a flow control device that isolates the water supply to WC’s and other areas when they are not in use, there by limiting the risk of water wastage and damage from undetected water leaks

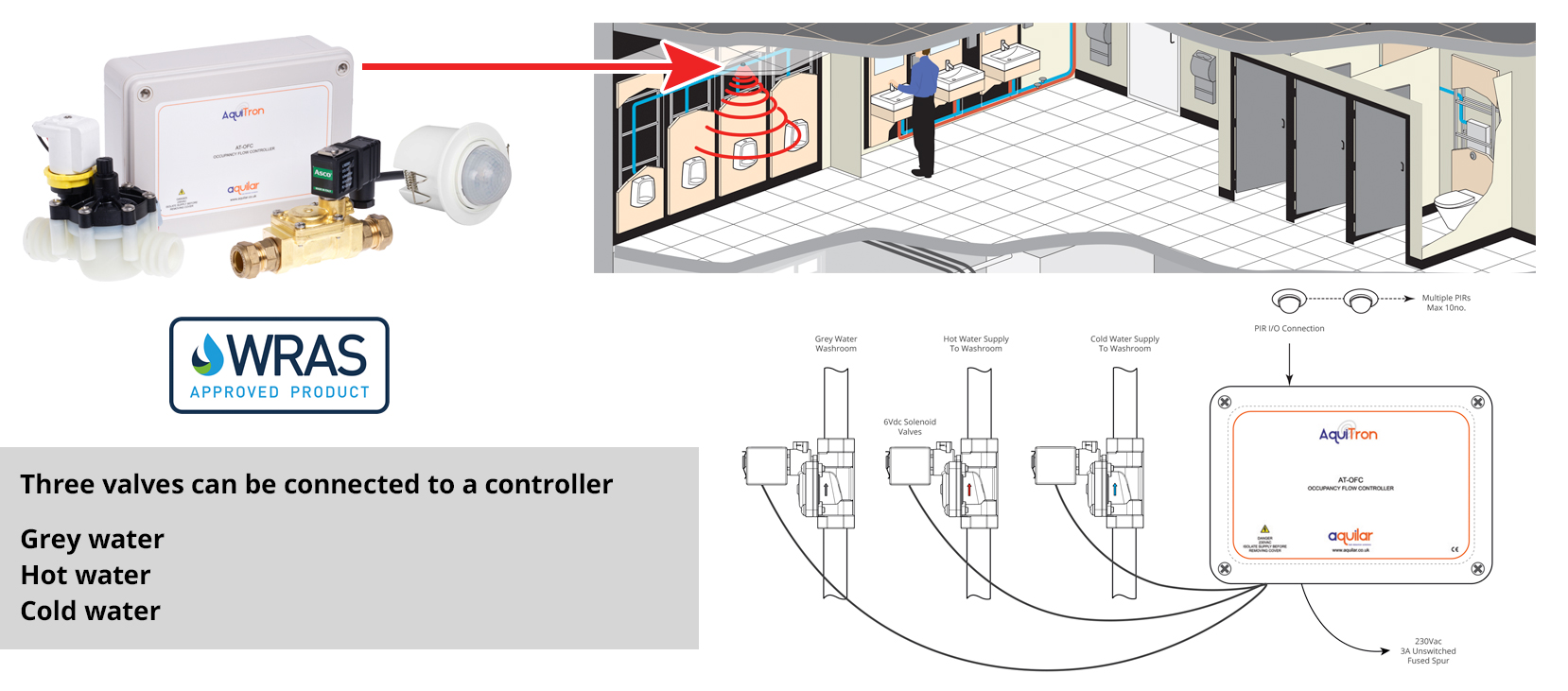

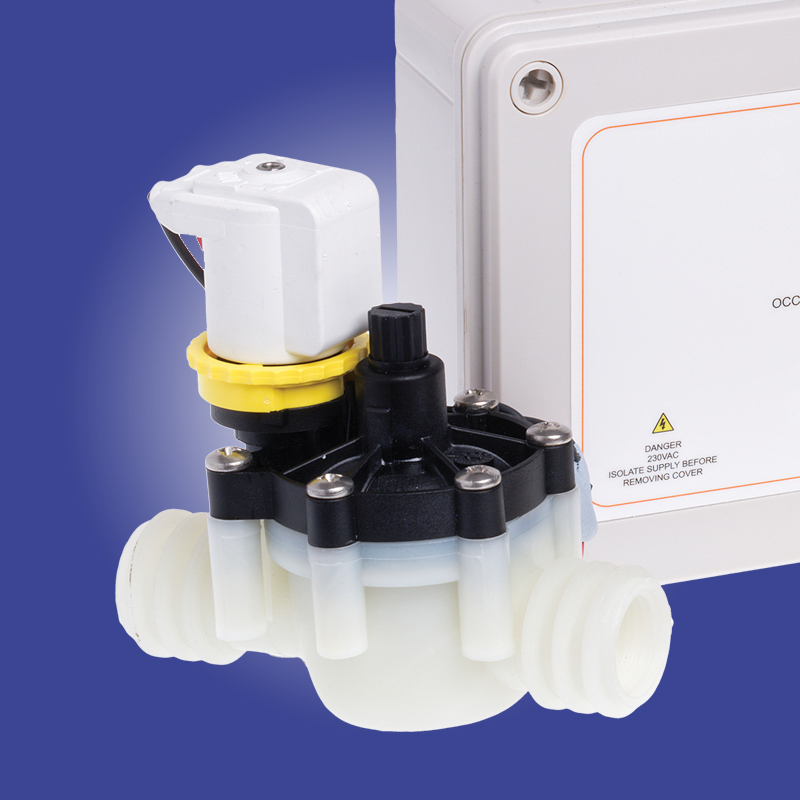

  • The system comprises of a main controller, ceiling mounted recessed or surface mounted PIR sensor (maximum of 10 PIR sensors) and a range of 6Vdc brass and plastic latching solenoid valves 15mm to 42mm (½” to 1½”). Up to 3 valves can be powered by the controller
  • The AT-OFC is ideally suited to projects where PIR control is required for water shut off in commercial buildings: WC’s, tea points, kitchens, utility rooms and shower areas. This system helps towards compliance with BREEAM Wat 03 (Part 2). It can also be combined with all AquiTron or TraceTek leak detection systems using sensing cables and probes to act as a master valve controller for tea points and kitchen area

View source here

AquiTron AT-OFC Product Leaflet
AquiTron Occupancy Flow Controller (AT-OFC) Datasheet
AquiTron Occupancy Flow Controller (AT-OFC) Installation & Operation Instructions
AquiTron Latching Polyamide Solenoid Valve (AT-VP) Datasheet
AquiTron Latching Brass Solenoid Valve (AT-V-B) Datasheet
AquiTron Ceiling Mount Semi-Recessed PIR (AT-OFC-PIR-F) Datasheet
AquiTron Ceiling Mount Surface PIR (AT-OFC-PIR-S) Datasheet
AquiTron Wall Mount Surface PIR (AT-OFC-PIR-W) Datasheet
AquiTron Ceiling Mount Flush Semi-Recessed Microwave PIR (AT-OFC-PIR-M) Datasheet
BREEAM 2018 (Wat 03 Water Leak Detection) New Construction Non-Domestic Buildings
We are BIM ready - Aquilar BIM logo

CLICK for the previous model AT-PIR-SOV BREEAM Water Shut-Off System

Credit 2: Compliant, PIR WC Controller with WRAS-Approved Solenoid Valves

BREEAM Criteria: A presence detector and controller i.e. an automatic device detecting occupancy or movement in an area to switch water on and turn it off when the presence is removed. (Source: www.breeam.com)

BREEAM PIR Automatic WC Water Shut-Off System, Wat 03 Water leak prevention system


PIR Positioning

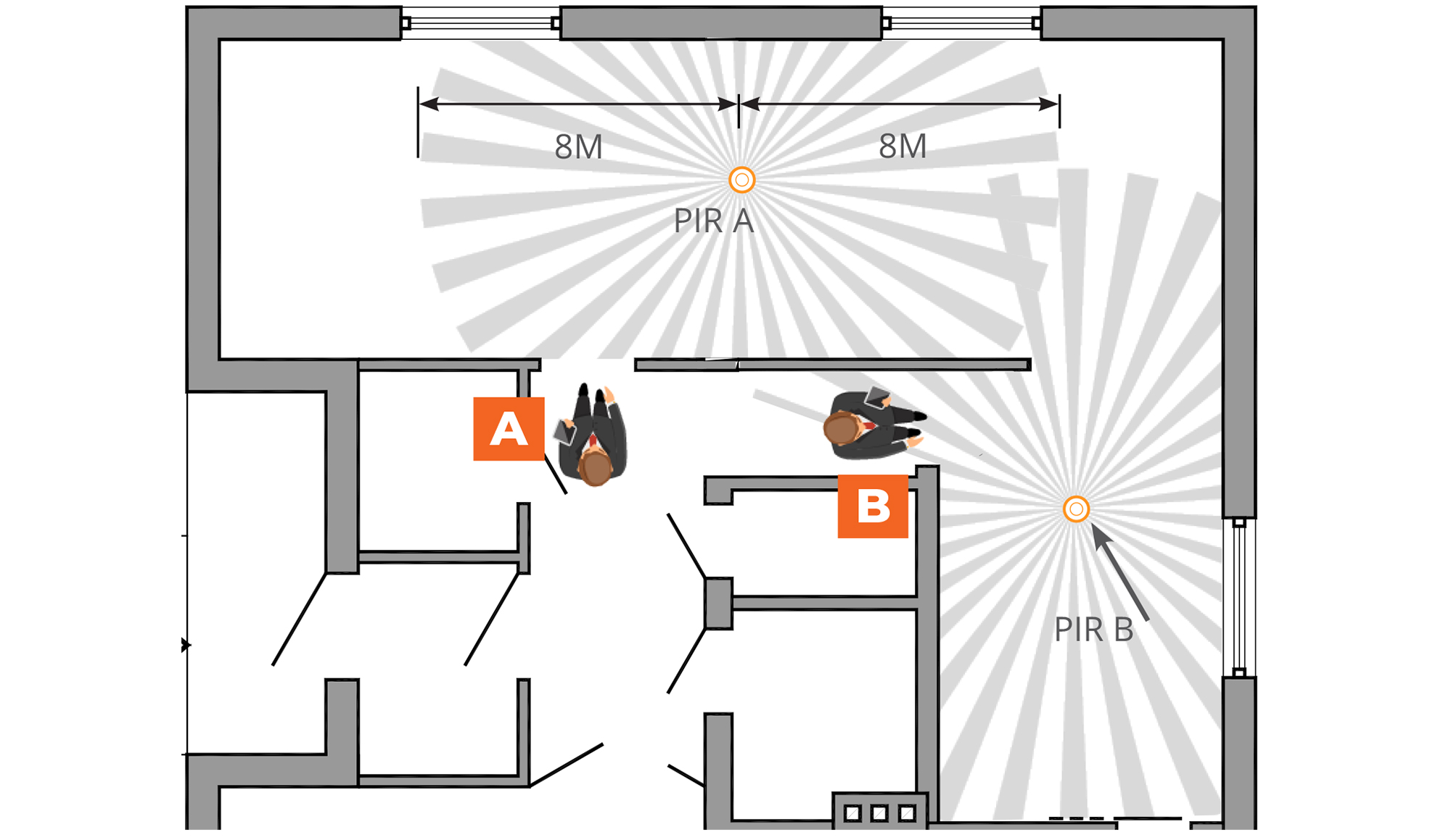

The Aquilar supplied PIR sensor has a range of 8 Metres when installed at 2.4M above finished floor level, different heights will affect the beam width or sensitivity. The device must be located so the sensor will detect movement within its field of view. The AT-OFC can be mounted out of sight and multiple PIRs can be used to pick up movement as seen in the example diagrams below.

BREEAM PIR Automatic WC Water Shut-Off System, Wat 03 Water leak prevention system


PIR Sensor Position

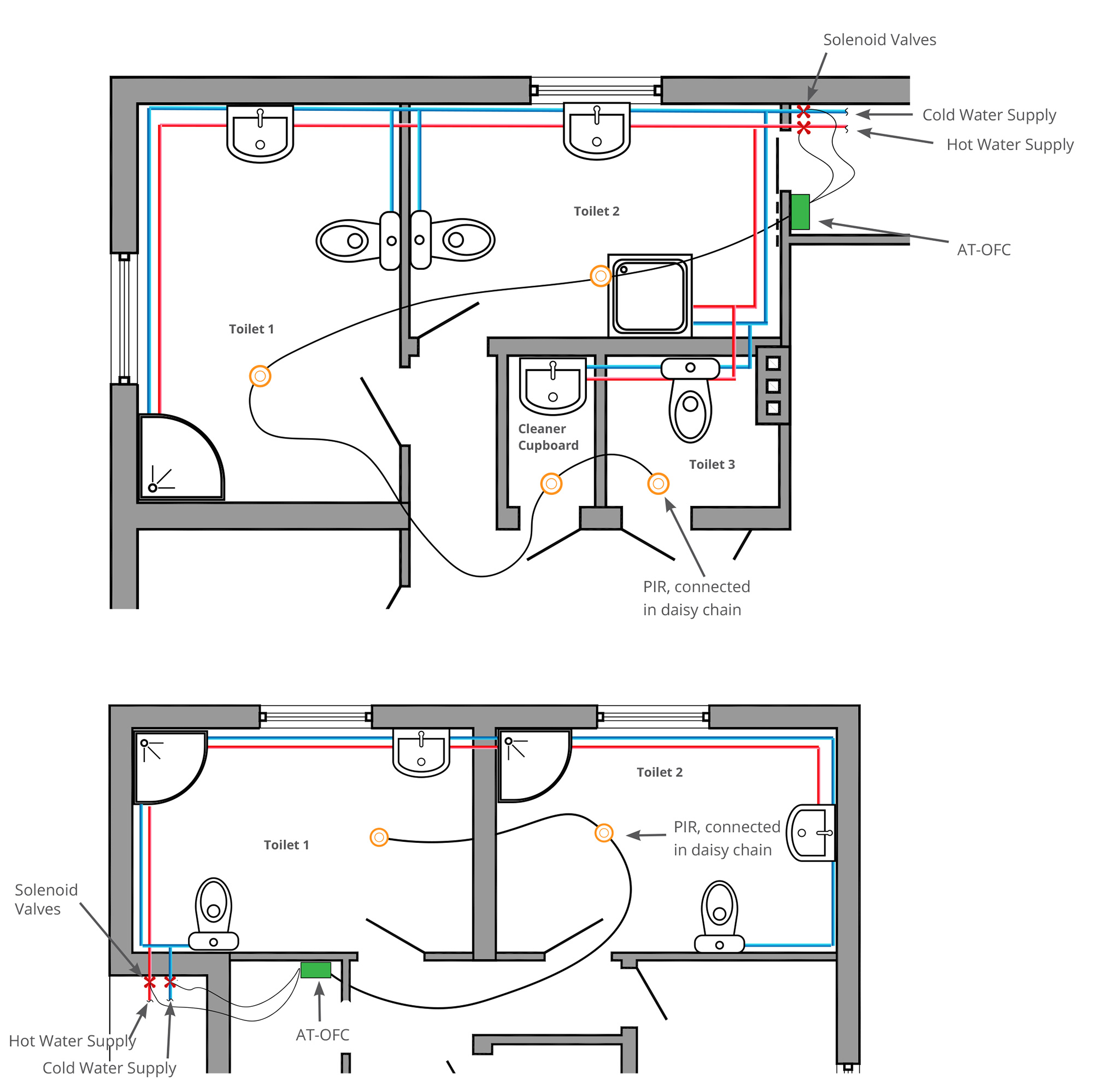

Locate the sensor on the ceiling or high on a wall opposite and with a clear view, to the entrance. Keep away from areas that may be affected by damp, steam and water splashes. If you are unsure, test that the unit operated correctly before fixing permanently.

BREEAM PIR Automatic WC Water Shut-Off System, Wat 03 Water leak prevention system


PIR Sensor Types

Four types of PIR sensor for use with Occupancy Flow Controller (AT-OFC) for BREEAM Wat 03 (part 2) water shut-off systems.

Technical data is available on the datasheet and installation instructions.

AT-OFC-PIR-F-BREEAM-WAT03-PIR AT-OFC-PIR-S-BREEAM-WAT03-PIR AT-OFC-PIR-W-BREEAM-WAT03-PIR AT-OFC-PIR-M-BREEAM-WAT03-PIR
Product Code AT-OFC-PIR-F AT-OFC-PIR-S AT-OFC-PIR-W AT-OFC-PIR-M
Mounting Flush (Recessed) Surface Wall Semi-Flush
Sensor Technology Passive Infrared Passive Infrared Passive Infrared High Frequency
Installation Position Ceiling Ceiling Wall, Corner Wall, Ceiling, Corner
