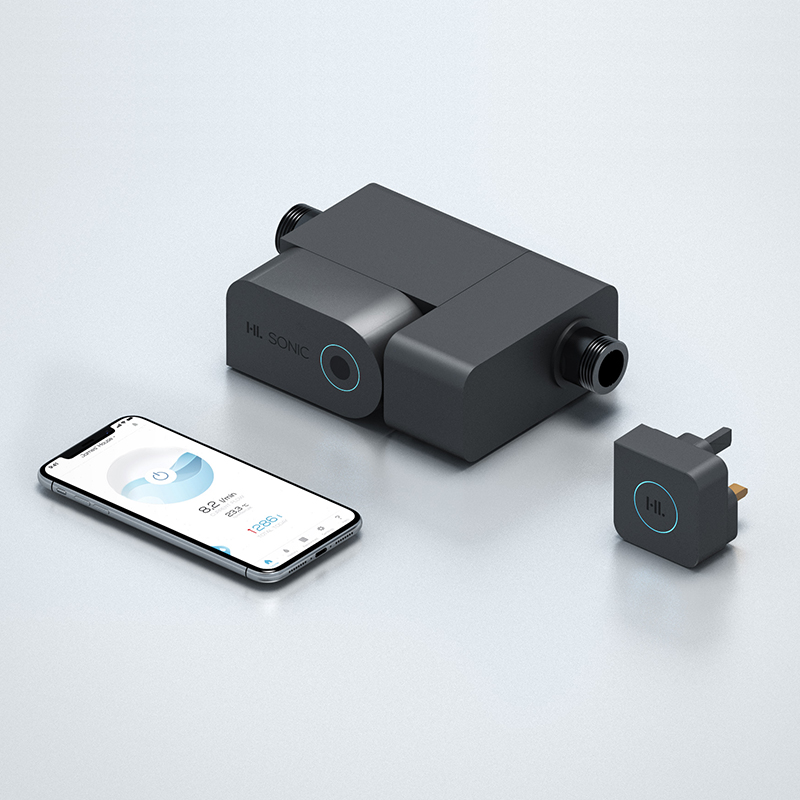

Sonic Pro Ultrasonic Automatic Water Leak Detection Shut-Off System (including 15mm & 22mm pipe fittings)

Catalog No. AT-SONIC-PRO c/n 10120

Out of stock

Category:

Description

Sonic System Package, c/w Sonic, Signal, Including Smart Monitoring* including a 5-year warranty.

Package contains:

  • 1 x SONIC Pro unit
  • 1 x Signal Wi-Fi receiver unit (UK plug type)
  • 1 x plug-in 230Vac PSU (UK plug type)
  • 1 x installation guide
  • Pipe fittings: 2 x 15mm and 2 x 22mm
  • Mobile phone not included

Sonic is the smartest leak protection system ever created.

Sonic monitors the flow of water through your home and intelligently analyses it around the clock to detect leaks, protect your property, and help you to save water – and money, too.

A burst pipe can release up to half a tonne of water per hour. In fact, water leaks cause more damage to UK property than any other factor – more than all house fires, explosions and burglaries combined. (ABI figures)

Sonic’s smart power pack gives you a range of options. Go completely wireless with up to two years’ operation from lithium AA batteries, or run from the mains with the safety of battery backup if the power goes out. Either way you can count on Sonic for reliable uninterrupted operation.

To access Sonic and receive alerts. The Sonic app must be installed and registered on a suitable mobile device. Mobile device not supplied.

Phone not included.

* Smart monitoring is currently included as a beta function. Allowing advanced features to be accessed via the Sonic app (IOS and Android version available).

For technical help & advice call 01403 216100 or email [email protected]

Datasheets, plumber’s installation guide and product brochure are all available here

Size (WxHxD): 206 x 114 x 50mm

Power: Plugin External Power Supply - 230Vac to 7.5Vdc (included)
max 1.8M cable length
Battery pack – 4x AA (Lithium recommended) (not included)

Operating Conditions: Indoor use, 0 to 50 degrees

Shut-off valve: Included - Wras Approved

Flow Direction: Unidirectional

Working Pressure: Up to 10 Bar

Pressure Drop: 0.14 Bar

Pipe Connection: SONIC body has a ¾” BSP male connection and supports a 15mm or 22mm adaptors sold separately.

Recommended Connector Type: Straight Tap Connector 15mm X ¾” with washer,
22mm X ¾” with washer, max 28mm pipe size. 15mm to 22mm fittings sold separately.

Network Connectivity: Wifi required for the plug in SIGNAL unit
