Identify a TraceTek leak detection panel and sensing cables

TraceTek has been around since 1984 and thousands of systems have been supplied within the UK and around the world.

If you are looking for advice, guidance or to find someone to talk to, have a look through this section of the site. Getting your system maintained or to clear a “service alarm” is vital when alarms occur.

TraceTek and AquiTron™ systems should ideally be maintained at least twice a year; some clients will require a more frequent check, especially when the system is protecting all the business’ electronic data.

To make it easier to identify which alarm panel or sensing cable you have installed within your facility we have listed most of the common combinations.

If you do not see the panel detailed or it does not look similar to one of the descriptions, just mail us a photo and we will identify it for you.

Whilst many of the alarm panels are earlier models, current versions are direct replacements, so you may not need to change the whole system.

In most cases old and new sensing cables are interchangeable, you can even mix old and new types together, so, if you discover a damaged cable, you may only need to replace that section.

pdf_iconClick here to download “TT1000 Maintenance Procedures.pdf”

Identify an old TraceTek, AquiTron™, Aquentis or Proteus leak detection panel

* denotes a current product

Manufacturer’s Description Enclosure size (W x H x D) and materials Photo/Illustration

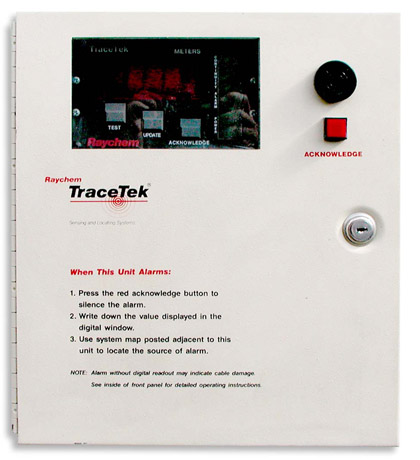

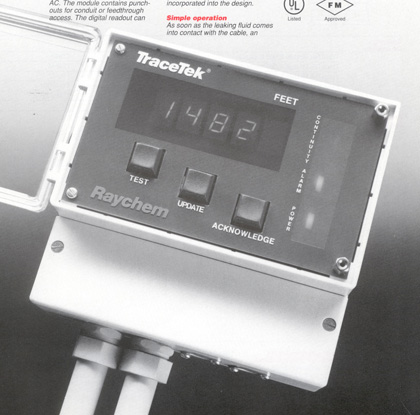

TTM-1KM
TTM
All these panels are 170mm x 155mm x 90mm (6.69” x 6.11” x 3.54”)

Colour: grey case

1
TTB-MA
TTB-FA
TTB-MD
TTB-FD
TTB-IZA
TTB-IZD (Accessory to be fitted within the TTB panels)
TTB-CTR
TTB-REL
All these panels are 305mm x 356mm (12” x 14” x 4”)
Metal
Colour: magnolia
OLYMPUS DIGITAL CAMERA
TTDM-1
TTDM-2
TTDM-24
TTDM-PLUS
TTDM-PLUS-24

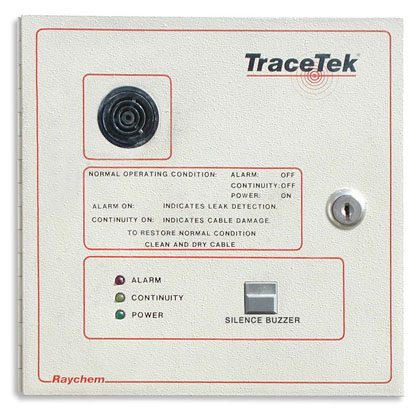

All these panels are 300mm x 200mm x 85mm (11.8” x 9.45” x 3.35”)
Metal
Colour: RAL 9032
3

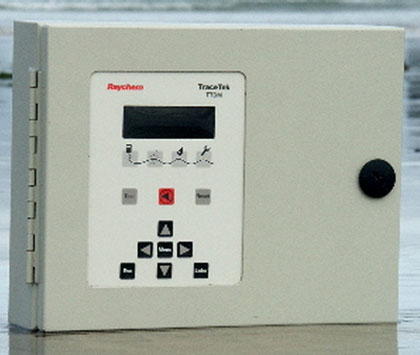

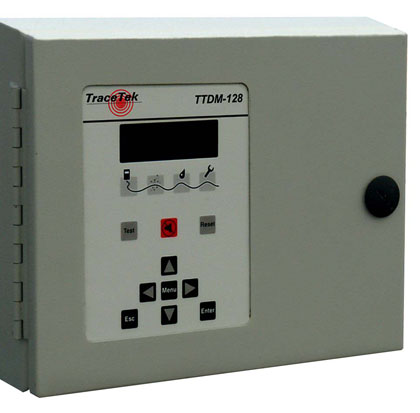

TTDM-128 *
TTDM-128-24 *
All these panels are  300mm x 200mm x 85mm (11.8” x 9.45” x 3.35”)
Metal
Colour: RAL 9032
4

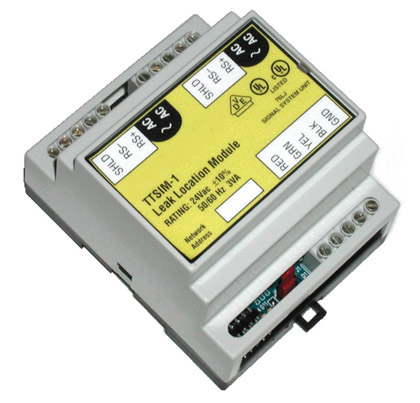

TTSIM-1 * 70mm x 85mm x 65mm (2.75” x 3.35” x 2.56”)
Plastic
Colour: grey case, yellow front
5

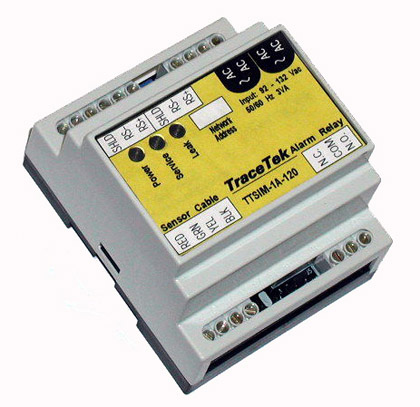

TTSIM-1A * 70mm x 85mm x 65mm (2.75” x 3.35” x 2.56”)
Plastic
Colour: grey case, yellow front
OLYMPUS DIGITAL CAMERA

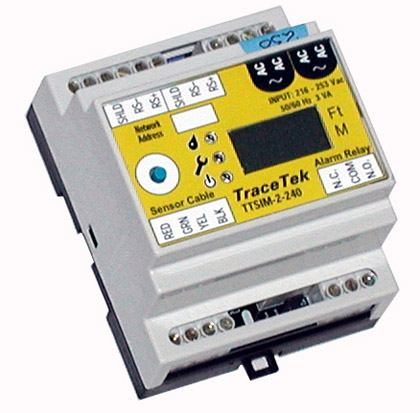

TTSIM-2 * 70mm x 85mm x 65mm (2.75” x 3.35” x 2.56”)
Plastic
Colour: grey case, yellow front
7

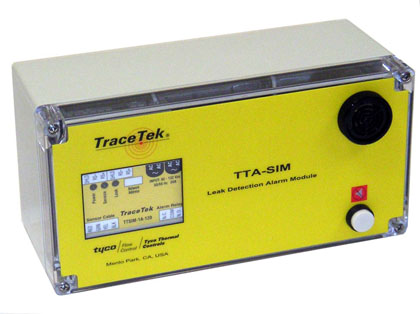

TTA-SIM-1A *
TTA-SIM-2 *
TTA-SIM *
All these panels are 240mm x 120mm x 110mm (9.44” x 4.72” x 4.33”)
Plastic
Colour: grey case, yellow front
MINOLTA DIGITAL CAMERA
TTA-1
TTA-1-UL
TTA-1-UL-E
All these panels are 206mm x 206mm x 101mm (8.13” x 8.13” x 4.00”)
Metal
Colour
OLYMPUS DIGITAL CAMERA

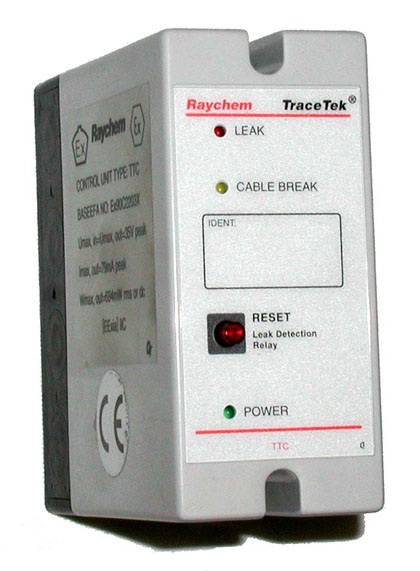

TTC-1 * 52mm x 112mm x 106mm (2.00” x 4.4” x 4.2”)
10

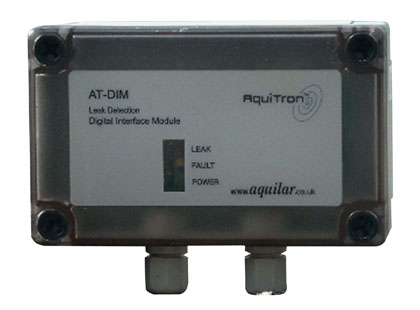

AT-DIM  130mm x 80mm x 36mm (5.2” x 3.15” x 1.42”)
Plastic
Colour: Grey
11

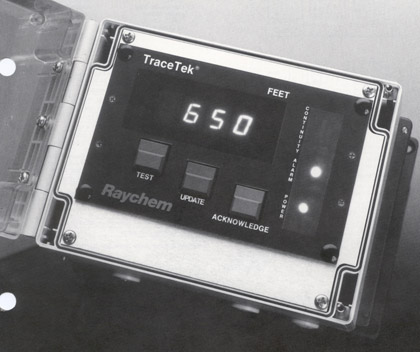

TTE-FS
TTE-MS
TTE-FB
TTE-MB
TTE-IZS
TTE-IZBTTE-CTR (accessory to accompany the TTE panels)
All these panels are 300mm x 200mm x 85mm (7.56” x 5.67” x 5.98”)
Plastic
Colour: Grey
12

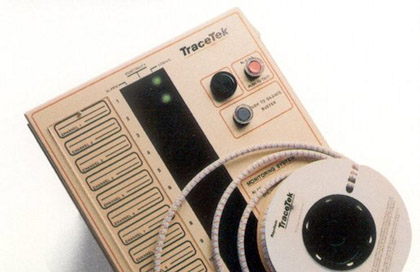

TTG-4
TTG-8
TTG-12
All these panels are 305mm x 356mm x 102mm (12.00” x 14.00” x 4.00”)
Metal
13

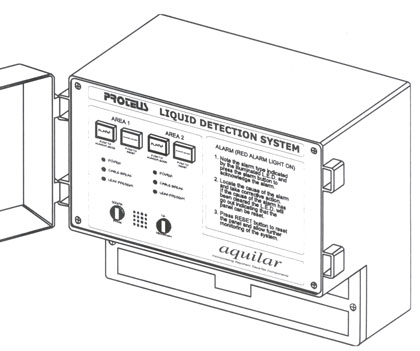

P-RPTTC 231mm x 185mm x 113mm (9.1” x 7.3” x 4.44”)
Plastic
Colour: Grey
OLYMPUS DIGITAL CAMERA
P-RPTTC2 314mm x 260mm x 113mm (12.36” x 10.24” x 4.44”)
Plastic
Colour: Grey
15

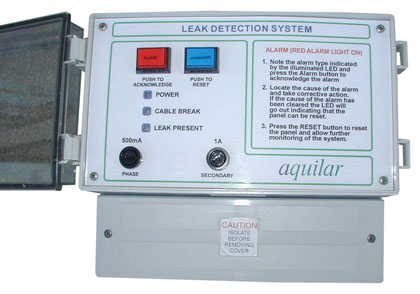

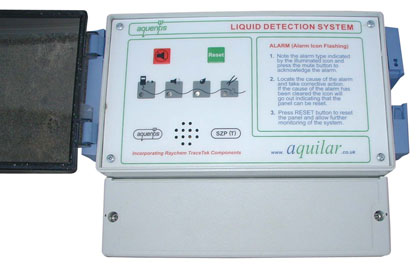

SZP(T) 231mm x 185mm x 113mm (9.1” x 7.3” x 4.44”)
Plastic
Colour: Grey
OLYMPUS DIGITAL CAMERA

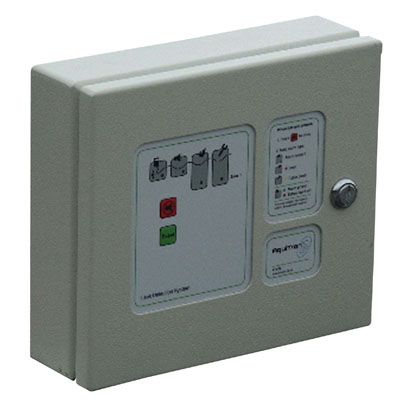

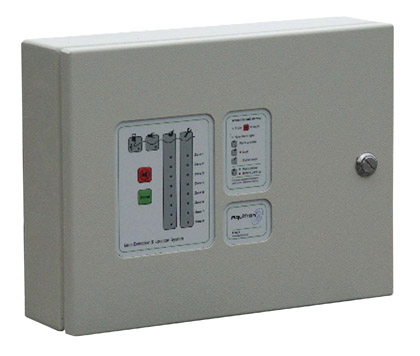

AT-SZA * 240mm x 210mm x 80mm (yy” x yy” x yy”)
Metal
Colour: RAL 7032
17
AT-MZA * 332mm x 250mm x 98mm (yy” x yy” x yy”)
Metal
Colour: RAL 7032
18

Remote Repeater Panels
RPA

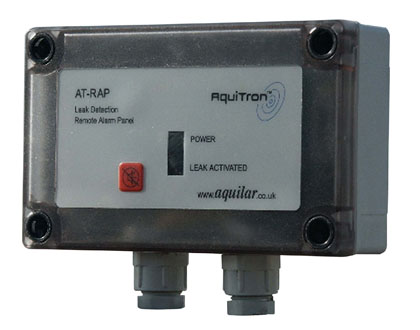

AT-RAP * 130mm x 80mm x 36mm (5.2” x 3.15” x 1.42”)
Plastic
Colour: Grey
19

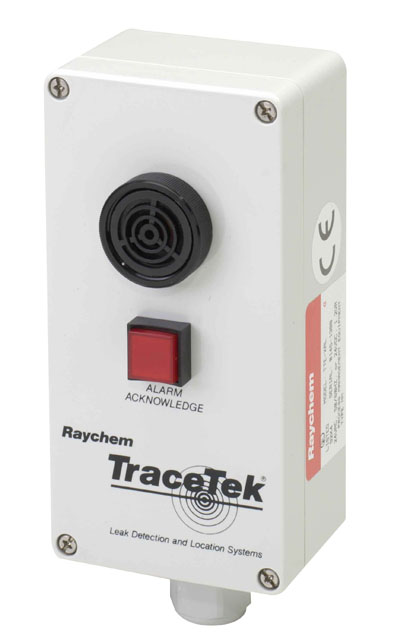

TTE-XAL 80mm x 160.5mm x 55.1mm (3.16” x 6.32” x 2.17”)
Plastic
Colour: Grey
20

* denotes a current product

Identify your TraceTek sensing cables

Water
TT100 Plastic connectors blue braid
21
TT120 Plastic connector orange/blue braid
22

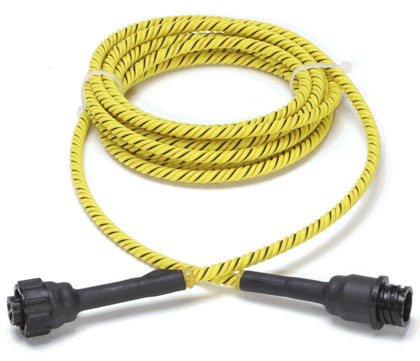

TT1000 * Plastic connectors yellow core
23

Aqueous Chemicals – Acids
TT300

Metal connectors white/black braid

24

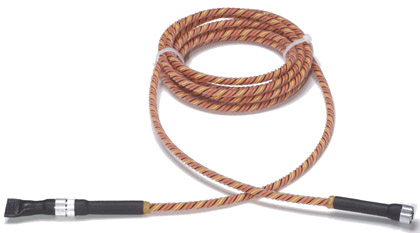

TT320
25
TT3000 * Metal connectors orange core
26

Fuels – Oils (Hydrocarbon)
TT502

Metal connectors white/black/red braid

27
TT522 Plastic connector white/black/red braid
28

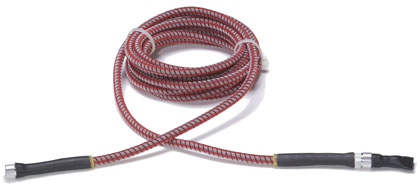

TT5000 * Metal connectors red/white/black braid
29

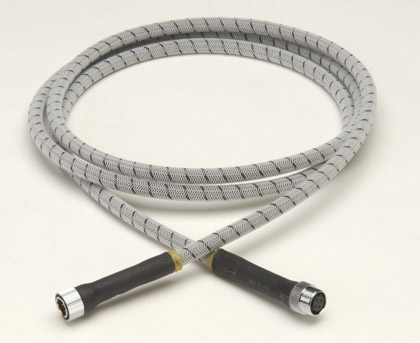

Solvents (Hydrocarbon)
TT501

Metal connectors white/black braid

30
TT521 Plastic connector white/black/red braid
31
TT5001 * Metal connectors white/black braid
32

* denotes a current product

Jumper Cables
Plastic connector For TT100 and TT1000 series
33
Metal connector for TT300/500 and TT3000/5000 series
34
