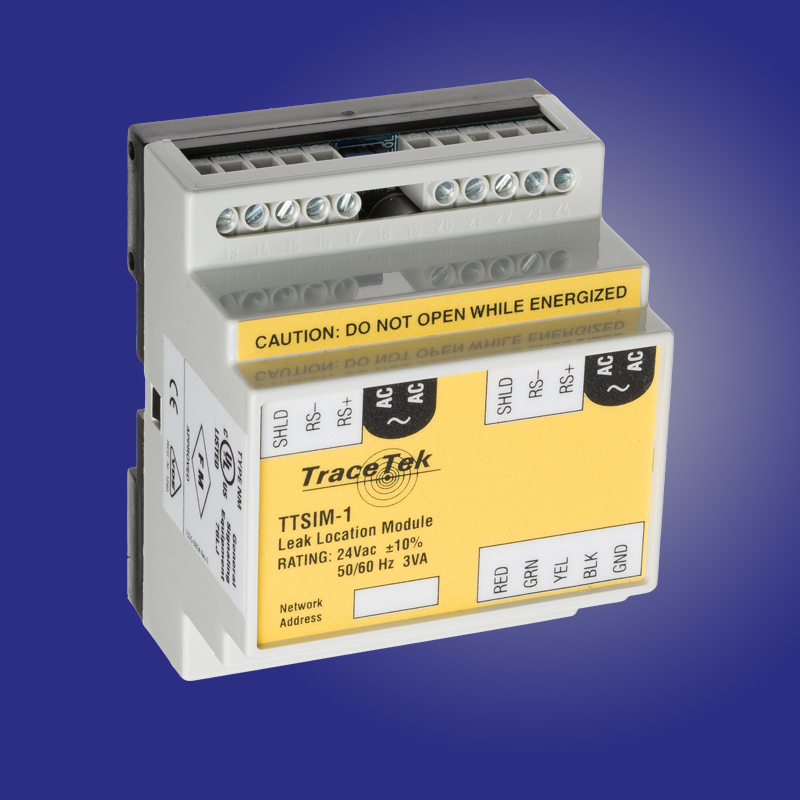

System Interface Module TTSIM-1
System Interface Module (slave controller) TTSIM-1
  • Monitors all TraceTek sensing cables and AquiTron™ water, fuel oil and refrigerant gas sensors
  • Direct BMS interface using MODBUS, Opto-22, or Johnson Controls Metasys protocol
  • Compact enclosure designed to be clipped directly into a controls cabinet
  • Can be networked to a TTDM-128 master panel or connected directly to a BMS, PLC and building controls system
  • Capable of monitoring a combination of:
    • 1500 metres of any TraceTek sensing cable
    • 100 zones per SIM
    • 100 detector probes / optical sensors / float switches / immersion sensors
  • Accuracy, pinpoint to +/- 1 metre / 1 zone
  • Zone & Area naming can be added to assist in the leak location when connected to a TTDM-128 panel
  • LED Status Indicators for power, communications, leak and service required
    24Vac Power
  • Digital BMS interface via RS-485 using Modbus RTU, OPTO 22 or Metasys protocol
Click for Datasheet
Installation & Operation
Commissioning Sheet
Modbus Register Data
TT-MPT Mapping Instructions
