Single Channel Alarm Panels TTASIM-1 and TTASIM-2
TTA SIM 1-2

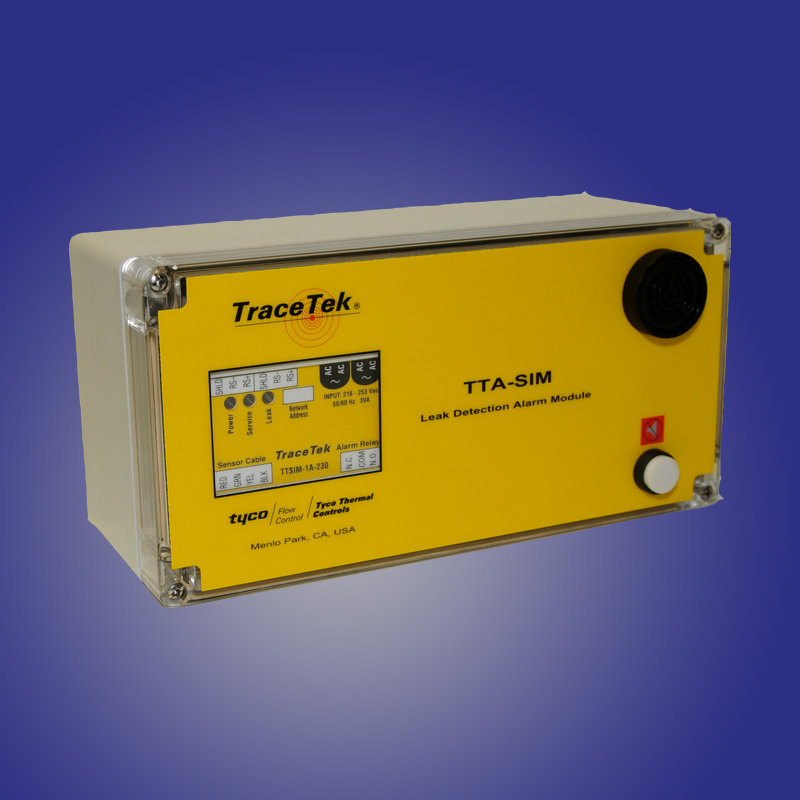

  • A fully enclosed TTSIM-1A or TTSIM-2 complete with buzzer and alarm relay.
  • Can operate as a small stand-alone panel or can be networked to a TTDM-128 master panel or connected directly to a BMS, PLC and building controls system
  • This shows the versatility of the TT-SIM range. The TTA-SIM is either the TTSIM-1A or TTSIM-2 coupled with a buzzer and housed in an enclosure to providing a compact single zone panel
  • The TTA-SIM-2 version digitally displays the location of the leak and switches a relay to provide local voltage-free contact closure
  • Can be networked to a TTDM-128 master panel or connected directly to a BMS, PLC and building controls system
  • Programmable volt free contacts for connection to remote devices
  • Capable of monitoring a combination of:
    • 150 metres of any TraceTek sensing cable
    • 10 zones per SIM
    • 10 detector probes / optical sensors / float switches / immersion sensors
  • Accuracy, pinpoint to +/- 1 metre / 1 zone
  • Zone & Area naming can be added to assist in leak when connected to a TTDM-128 panel
  • LED Status Indicators: power, communications, leak, and service required
  • Available for 24Vac, 12/24Vdc, 120Vac or 230Vac power
  • Digital BMS interface via RS-485 using Modbus RTU, OPTO 22, Metasys and volt free contacts
  • Remote connection to speech and auto diallers
